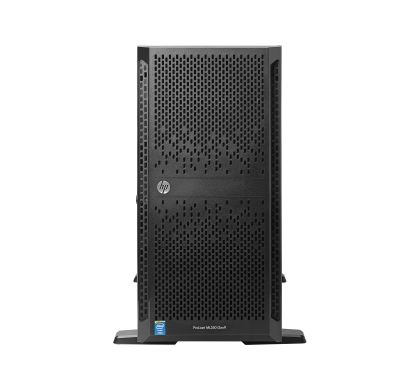

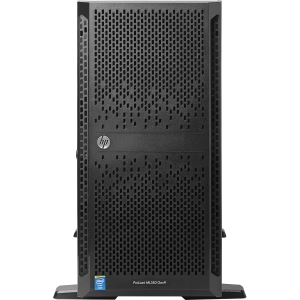

HP ProLiant ML350 G9 5U Tower Server - 1 x Intel Xeon E5-2620 v3 Hexa-core (6 Core) 2.40 GHz

HP ProLiant ML350 G9 5U Tower Server - 1 x Intel Xeon E5-2620 v3 Hexa-core (6 Core) 2.40 GHz
765820-371

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

The ML350 Gen9 is the 2P premium server which delivers a class-leading combination of performance, availability, expandability, manageability, reliability and serviceability making it the choice for remote offices, growing businesses and data centers.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
ML350 G9
Product Name:
ProLiant ML350 Gen9 E5-2620v3 16GB-R P440ar 8SFF 500W PS Base Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2620 v3
Processor Core:
Hexa-core (6 Core)
Processor Speed:
2.40 GHz
Maximum Turbo Speed:
3.20 GHz
Cache:
15 MB
QuickPath Interconnect:
8 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C610

Memory

Standard Memory:
  • 16 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
  • DDR4-2133/PC4-17000
Number of Total Memory Slots:
24
Memory Card Reader:
Yes
Memory Card Supported:
  • microSD

Storage

Number of Hard Drives:
No

Controllers

Controller Type:
  • 12Gb/s SAS
RAID Supported:
Yes

I/O Expansions

Number of Total Expansion Bays:
9
Number of External 5.25" Bays:
1
Number of Internal 2.5" Bays:
8
Number of Total Expansion Slots:
9
Number of PCI Express x8 Slots:
5
Number of PCI Express x16 Slots:
4

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
8
Number of USB 2.0 Ports:
5
Number of USB 3.0 Ports:
3
Network (RJ-45):
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
500 W

Miscellaneous

Compatibility:
  • Microsoft Windows Server
  • Canonical Ubuntu
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • VMware
  • Citrix XenServer
Certifications & Standards:
  • ACPI 2.0b Compliant
  • PCIe 3.0 Compliant
  • PXE Support
  • WOL Support
  • Novell Certified
  • IPMI 2.0, SMASH CLP, DCMI 1.0 compliant
  • Microsoft Logo Certifications
  • SMBIOS 2.7.1
  • ASHRAE A3
  • ASHRAE A4
  • FCC Rating Class A
  • CISPR 22
  • EN55022
  • EN55024
  • FCC CFR 47, Pt 15
  • ICES-003
  • CNS13438
  • GB9254
  • K22
  • K24
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 60950-1
  • IEC 60950-1
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star
  • REACH
  • WEEE
  • EU WEEE

Physical Characteristics

Form Factor:
Tower
Rack Height:
5U
Height:
464.1 mm
Width:
218.9 mm
Depth:
769.1 mm
Weight (Approximate):
55 kg

Warranty

Standard Warranty:
3 Year
