HP ProLiant ML10 4U Micro Tower Server - 1 x Intel Xeon E3-1220V2 3.1GHz - 1 Processor Support - 4 GB Standard/32 GB Maximum RAM - Serial ATA/300 RAID Supported Controller - Gigabit Ethernet - RAID Level: 0, 1, 1+0 - 300 W

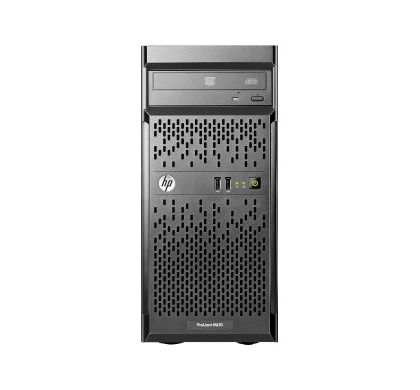

HP ProLiant ML10 Server 757643-375
757643-375

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

The HP ProLiant ML10 Server is a single-socket 4U tower server, delivering excellent value in a large form factor that small businesses require to run a small network environment. It is outstanding for businesses looking for improved performance, number of available slots, and flexible storage options while staying within a tight budget.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
ML10
Product Name:
ProLiant ML10 Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E3-1220V2
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.10 GHz
Maximum Turbo Speed:
3.50 GHz
Cache:
8 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No
Chipset Manufacturer:
Intel
Chipset Model:
C204

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
4

Controllers

Controller Type:
  • Serial ATA/300
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Number of External 5.25" Bays:
1
Number of Total Expansion Slots:
4
Number of PCI Express x4 Slots:
1
Number of PCI Express x8 Slots:
2
Number of PCI Express x16 Slots:
1

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
7
Number of USB 2.0 Ports:
7
Network (RJ-45):
Yes
Remote Management:
Yes

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
300 W

Miscellaneous

Package Contents:
  • ProLiant ML10 Server
  • 6 Country Specific NEMA Power Cord
Compatibility:
  • Microsoft Windows Server
  • SUSE Linux Enterprise Server (SLES)
Certifications & Standards:
  • ACPI V3.0b Compliant
  • PCI Express Rev 2.0
  • PXE Support
  • WOL Support
  • IPMI 2.0 Compliance
  • DCMI 1.0
  • Microsoft Logo Certifications
  • Red Hat Enterprise Linux Logo Certifications
  • SUSE Linux Enterprise Server Logo Certifications
  • FCC Rating Class B
  • CISPR 22
  • EN55022
  • EN55024
  • FCC CFR 47, Pt 15
  • ICES-003
  • CNS13438
  • GB9254
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 60950-1
  • IEC 60950-1
                    Green Compliant:
                    Yes
                    Green Compliance Certificate/Authority:
                    • WEEE
                    • EU WEEE

                    Physical Characteristics

                    Form Factor:
                    Micro Tower
                    Rack Height:
                    4U
                    Height:
                    363.9 mm
                    Width:
                    165 mm
                    Depth:
                    381 mm

                    Warranty

                    Standard Warranty:
                    1 Year
