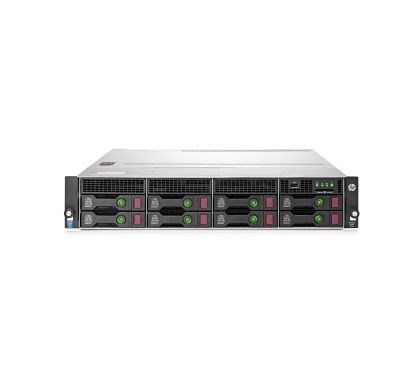

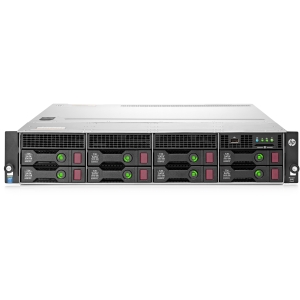

HP ProLiant DL80 G9 2U Rack Server - 1 x Intel Xeon E5-2609 v3 Hexa-core (6 Core) 1.90 GHz

HP ProLiant DL80 G9 2U Rack Server - 1 x Intel Xeon E5-2609 v3 Hexa-core (6 Core) 1.90 GHz
778641-B21

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

The HP ProLiant DL80 Gen9 Server is designed with affordable storage, networking and processor scalability, and manageability in a 2U server for cost conscious service provider and SMBs. Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage, back-up due to compelling cost/GB that it offers.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
DL80 G9
Product Name:
ProLiant DL80 Gen9 E5-2609v3 8GB-R H240 8LFF 550W PS Entry Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2609 v3
Processor Core:
Hexa-core (6 Core)
Processor Speed:
1.90 GHz
Cache:
15 MB
QuickPath Interconnect:
6.40 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No
Chipset Manufacturer:
Intel
Chipset Model:
C610

Memory

Standard Memory:
  • 8 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
  • DDR4-2133/PC4-17000
Number of Total Memory Slots:
8
Memory Card Reader:
Yes
Memory Card Supported:
  • microSD

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • 12Gb/s SAS
  • Serial ATA
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 5

I/O Expansions

Number of 3.5" Bays:
8
Number of Total Expansion Slots:
5
Number of PCI Express x8 Slots:
2
Number of PCI Express x16 Slots:
3

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200eH2

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
1
Number of USB 3.0 Ports:
3
Network (RJ-45):
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 120 V AC
  • 230 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
550 W

Miscellaneous

Package Contents:
  • ProLiant DL80 Gen9 E5-2609v3 8GB-R H240 8LFF 550W PS Entry Server
  • 6-Foot IEC C-13/C-14 Jumper Cord
  • HP Easy Install Rails
Compatibility:
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Oracle Solaris
  • VMware
Certifications & Standards:
  • ACPI 2.0b Compliant
  • PCIe 3.0 Compliant
  • PXE Support
  • WOL Support
  • Microsoft Logo Certifications
  • FCC Rating Class A
  • CISPR 22
  • EN55022
  • EN55024
  • FCC CFR 47, Pt 15
  • ICES-003
  • CNS14336-1
  • CNS13438
  • GB4943
  • GB9254
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 60950-1
  • IEC 60950-1
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • WEEE
  • EU WEEE
  • REACH

Physical Characteristics

Form Factor:
Rack
Rack Height:
2U
Height:
87.6 mm
Width:
434.7 mm
Depth:
634.3 mm
Weight (Approximate):
27 kg

Warranty

Standard Warranty:
1 Year
