HP ProLiant DL320 G6 1U Rack Server - 1 x Intel Xeon E5503 2GHz - 1 Processor Support - 4 GB Standard/96 GB Maximum RAM - RAID Supported Controller - RAID Level: 0, 1, 1+0 - 400 W

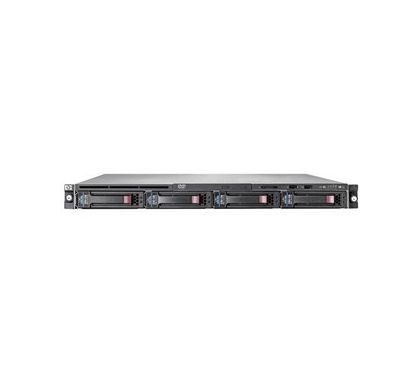

HP ProLiant DL320 G6 Server 593493-371
593493-371

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

The HP ProLiant DL320 G6 Server is an enterprise rack-optimized server at an entry level price. The highly manageable single processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
DL320 G6
Product Name:
ProLiant DL320 G6 Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5503
Processor Core:
Dual-core (2 Core)
Processor Speed:
2 GHz
Cache:
4 MB
64-bit Processing:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
5500

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
96 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-800/PC3-6400
Number of Total Memory Slots:
9

Storage

Optical Drive Type:
No
Optical Media Supported:
No

Controllers

Controller Type:
  • Serial ATA/150
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0

I/O Expansions

Expansion Bays:
  • 1 x 5.25" External Removable Media Bay Total
  • 4 x 3.5" Drive Bay Total Hot-swappable
Expansion Slots:
  • 1 x PCI Express x16 (Full-length) Full-height Total
  • 1 x PCI Express x16 (Half-length) Low-profile Total

Display & Graphics

Graphics Controller Manufacturer:
  • ATI
Graphics Controller Model:
  • ES1000
Graphics Memory Capacity:
  • Up to 64 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 2.0 Ports:
6
Network (RJ-45):
Yes
VGA:
Yes

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Maximum Power Supply Wattage:
400 W

Miscellaneous

Package Contents:
  • ProLiant DL320 G6 Entry-Level Server
  • 1 x 6' Highline (IEC-IEC) Power Cord
    • Green Compliant:
    Yes
    Green Compliance Certificate/Authority:
    • WEEE

    Physical Characteristics

    Form Factor:
    Rack
    Rack Height:
    1U
    Height:
    43.2 mm
    Width:
    448.1 mm
    Depth:
    682 mm

    Warranty

    Standard Warranty:
    3 Year
