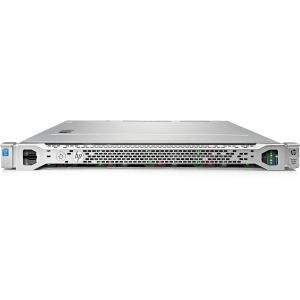

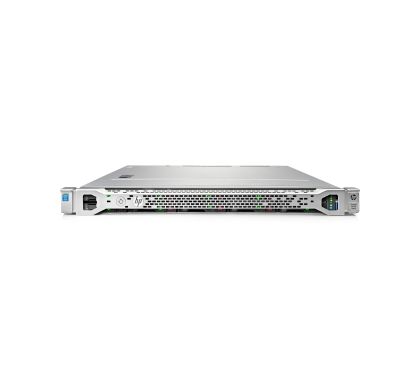

HP ProLiant DL160 G9 1U Rack Server - 1 x Intel Xeon E5-2603 v3 Hexa-core (6 Core) 1.60 GHz

HP ProLiant DL160 G9 1U Rack Server - 1 x Intel Xeon E5-2603 v3 Hexa-core (6 Core) 1.60 GHz
769503-B21

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

The HP ProLiant DL160 Gen9 is the next generation 2P 1U value server replacing DL360e Gen8. It delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of a diverse set of customers- from SMBs and service providers with a wide range of workloads - from general purpose IT to the New Style of IT, such as, Big Data and Cloud.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
DL160 G9
Product Name:
ProLiant DL160 Gen9 E5-2603v3 1P 8GB-R B140i 4LFF 550W PS Entry Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2603 v3
Processor Core:
Hexa-core (6 Core)
Processor Speed:
1.60 GHz
Cache:
15 MB
QuickPath Interconnect:
6.40 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No
Chipset Manufacturer:
Intel
Chipset Model:
C610

Memory

Standard Memory:
  • 8 GB
Memory Technology:
DDR4 SDRAM
Memory Standard:
  • DDR4-2133/PC4-17000
Number of Total Memory Slots:
16
Memory Card Reader:
Yes
Memory Card Supported:
  • microSD

Storage

Number of Hard Drives:
No

Controllers

Controller Type:
  • Serial ATA/600
  • 6Gb/s SAS
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 5, 10

I/O Expansions

Number of Total Expansion Bays:
5
Number of External 5.25" Bays:
1
Number of 3.5" Bays:
4
Number of Total Expansion Slots:
2
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
1

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
1
Number of USB 3.0 Ports:
3
Network (RJ-45):
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 230 V AC
  • 120 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
550 W

Miscellaneous

Package Contents:
  • ProLiant DL160 Gen9 E5-2603v3 1P 8GB-R B140i 4LFF 550W PS Entry Server
  • 6-Foot IEC C-13 to C-14 Jumper Cord
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • WEEE
  • EU WEEE
  • REACH

Physical Characteristics

Form Factor:
Rack
Rack Height:
1U
Height:
43.5 mm
Width:
434.6 mm
Depth:
607.6 mm
Weight (Approximate):
10.16 kg

Warranty

Standard Warranty:
3 Year
