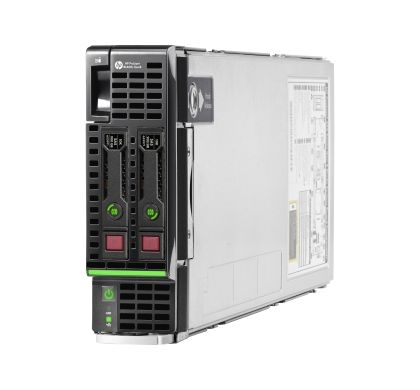

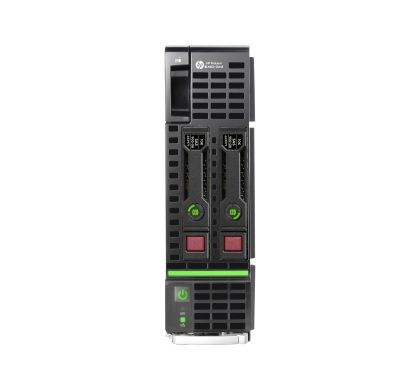

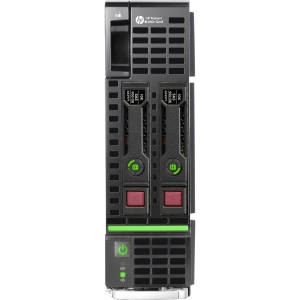

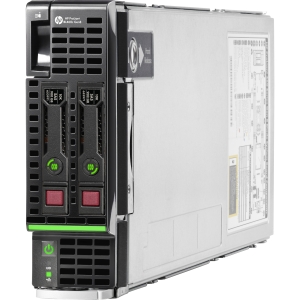

HP ProLiant BL460c G8 Blade Server - 1 x Intel Xeon E5-2640 v2 Octa-core (8 Core) 2 GHz

HP ProLiant BL460c G8 Blade Server - 1 x Intel Xeon E5-2640 v2 Octa-core (8 Core) 2 GHz
724085-B21

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

The HP ProLiant BL460c Gen8 Server Blade is a dual-socket server blade engineered for unprecedented performance, enhanced flexibility and simplified management which makes it the standard for data center computing. It packs in more performance with a 33% increase in memory DIMM count, Intel® Xeon® E5-2600 v2 Processors, faster I/O slots and enhanced Smart Array Controller that now ships with 512MB Flash Back Write Cache standard. In addition, it is also more flexible with the HP FlexibleLOM which provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
BL460c G8
Product Name:
ProLiant BL460c Gen8 E5-2640v2 1P 32GB-R P220i/512 FBWC Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2640 v2
Processor Core:
Octa-core (8 Core)
Processor Speed:
2 GHz
Cache:
20 MB
QuickPath Interconnect:
7.20 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C600

Memory

Standard Memory:
  • 32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3L-1600/PC3-12800
Number of Total Memory Slots:
16
Memory Card Reader:
Yes
Memory Card Supported:
  • MicroSD High Capacity (microSDHC)

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • 6Gb/s SAS
RAID Supported:
Yes
RAID Levels:
  • 0, 1

I/O Expansions

Number of Total Expansion Bays:
2
Number of Internal 2.5" Bays:
2
Number of Total Expansion Slots:
2
Number of PCI Express x16 Slots:
2

Display & Graphics

Graphics Controller Manufacturer:
  • Matrox
Graphics Controller Model:
  • G200

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
1
Number of USB 2.0 Ports:
1
Network (RJ-45):
Yes
Remote Management:
Yes

Software

Operating System:
No

Miscellaneous

Compatibility:
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Canonical Ubuntu
  • Oracle Solaris
  • VMware
  • Citrix XenServer
Certifications & Standards:
  • ACPI 2.0
  • Microsoft Logo Certifications
  • IPMI 2.0
  • TPM 1.2 Support
  • IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
  • Advanced Encryption Standard (AES)
  • Triple Data Encryption Standard (3DES)
  • SNMP
  • SSL 2.0
  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
  • Active Directory v1.0
  • PCIe 3.0
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • WEEE
  • EU WEEE

Physical Characteristics

Form Factor:
Blade
Height:
180.7 mm
Width:
55.4 mm
Depth:
517.6 mm

Warranty

Standard Warranty:
3 Year
