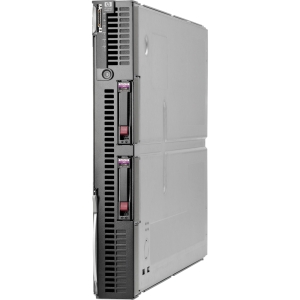

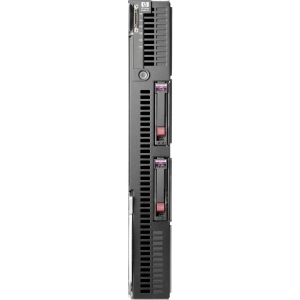

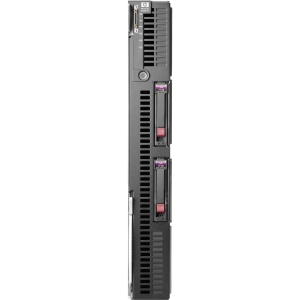

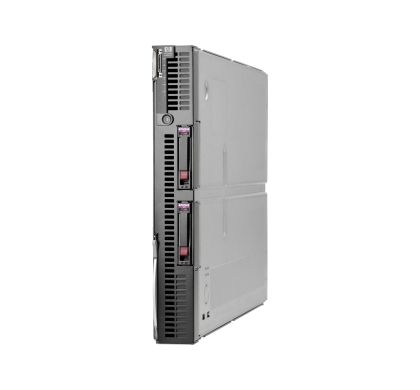

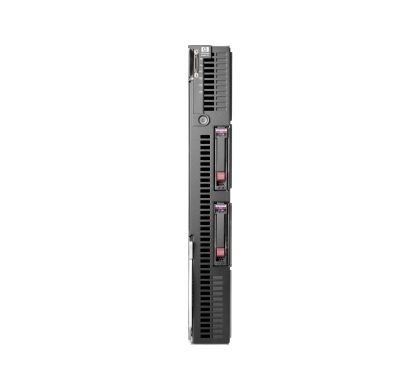

HP ProLiant BL685c G7 Blade Server - 4 x AMD Opteron 6380 Hexadeca-core (16 Core) 2.50 GHz

HP ProLiant BL685c G7 Blade Server - 4 x AMD Opteron 6380 Hexadeca-core (16 Core) 2.50 GHz
699066-B21

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

The HP ProLiant BL685c G7 Server Blade delivers scale-up, dense, cost-effective 4-socket performance for high-density virtualization and compute-intensive database environments. With up to 64 cores in a single blade and 32 DDR3 registered DIMM slots offering an impressive 1TB memory footprint, these servers are the ideal choice for the most demanding applications.

Delivering over 80 Gb of I/O bandwidth with four embedded HP NC551i Dual Port 10Gb FlexFabric Converged Network Adapter ports and three I/O expansion slots, this is the ideal 4-socket blade for enterprise data centers that demand cost-effective performance and scalability.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
BL685c G7
Product Name:
ProLiant BL685c G7 Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
4
Number of Processors Installed:
4
Processor Manufacturer:
AMD
Processor Type:
Opteron
Processor Model:
6380
Processor Core:
Hexadeca-core (16 Core)
Processor Speed:
2.50 GHz
Cache:
16 MB
Chipset Manufacturer:
AMD
Chipset Model:
SR5690

Memory

Standard Memory:
  • 64 GB
Maximum Memory:
1 TB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
32
Memory Card Reader:
Yes
Memory Card Supported:
  • MicroSD High Capacity (microSDHC)

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial ATA/300
  • 6Gb/s SAS
RAID Supported:
Yes
RAID Levels:
  • 0, 1

I/O Expansions

Number of Total Expansion Bays:
2
Number of Internal 2.5" Bays:
2
Number of Total Expansion Slots:
3
Number of PCI Express x8 Slots:
3

Display & Graphics

Graphics Controller Manufacturer:
  • ATI
Graphics Controller Model:
  • RN-50

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet
  • Fast Ethernet

Interfaces/Ports

Total Number of USB Ports:
1
Number of USB 2.0 Ports:
1
Network (RJ-45):
Yes
Remote Management:
Yes

Software

Operating System:
No

Miscellaneous

Compatibility:
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Oracle Solaris
  • VMware
  • Citrix XenServer
Certifications & Standards:
  • ACPI 2.0 Compliant
  • PCI 2.2 Compliant
  • WOL Support
  • Microsoft Logo Certifications
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • WEEE

Physical Characteristics

Form Factor:
Blade
Height:
366.3 mm
Width:
55.6 mm
Depth:
509.5 mm

Warranty

Standard Warranty:
3 Year
