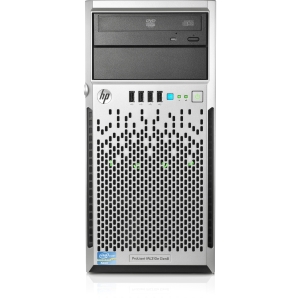

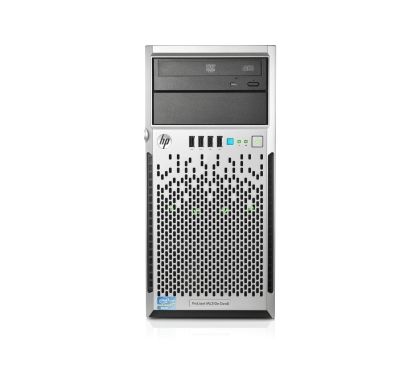

HP ProLiant ML310e G8 4U Micro Tower Server - 1 x Intel Xeon E3-1220 v3 Quad-core (4 Core) 3.10 GHz
This product has been discontinued by the manufacturer
Please visit
HP Serversfor alternative options.
Description
HP ProLiant ML310e Gen8, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical applications or databases.
Specifications
General Information
Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
ML310e G8
Product Name:
ProLiant ML310e Gen8 v2 E3-1220v3 1P 4GB-U B120i 350W PS Svr (712329-011)
Product Type:
Server
Processor & Chipset
Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E3-1220 v3
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.10 GHz
Cache:
8 MB
64-bit Processing:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
C204
Memory
Standard Memory:
- 4 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
- DDR3-1600/PC3-12800
Number of Total Memory Slots:
4
Memory Card Reader:
Yes
Memory Card Supported:
- Secure Digital (SD)
Storage
Optical Drive Type:
DVD-Writer
Controllers
Controller Type:
- Serial ATA/600
RAID Supported:
Yes
RAID Levels:
- 0, 1, 1+0
I/O Expansions
Number of Total Expansion Bays:
6
Number of External 5.25" Bays:
2
Number of 3.5" Bays:
4
Number of Total Expansion Slots:
4
Number of PCI Express x4 Slots:
1
Number of PCI Express x8 Slots:
2
Number of PCI Express x16 Slots:
1
Display & Graphics
Graphics Controller Manufacturer:
- Matrox
Graphics Controller Model:
- G200
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports:
10
Network (RJ-45):
Yes
Remote Management:
Yes
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
350 W
Miscellaneous
Compatibility:
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- VMware
Certifications & Standards:
- ACPI 2.0b Compliant
- PCIe 3.0 Compliant
- PXE Support
- WOL Support
- Microsoft Logo Certifications
- FCC Rating Class B
- CISPR 22
- EN55022
- EN55024
- FCC CFR 47, Pt 15
- ICES-003
- CNS13438
- GB9254
- K22
- K24
- EN 61000-3-2
- EN 61000-3-3
- EN 60950-1
- IEC 60950-1
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- REACH
- WEEE
- EU WEEE
Physical Characteristics
Form Factor:
Micro Tower
Rack Height:
4U
Height:
368.2 mm
Width:
175 mm
Depth:
475.2 mm
Weight (Approximate):
18.96 kg
Warranty
Standard Warranty:
1 Year
