HP ProLiant 633777-371 1U Rack Server - 1 x Intel Xeon E5645 2.40 GHz

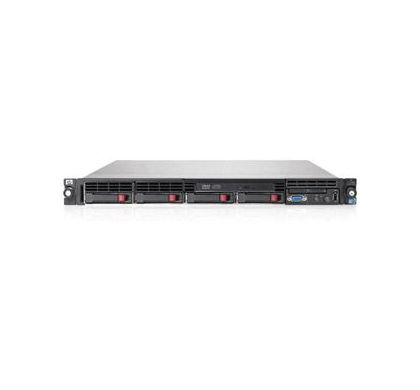

HP ProLiant 633777-371 1U Rack Server - 1 x Intel Xeon E5645 2.40 GHz Front
633777-371

This product has been discontinued by the manufacturer

Please visit

HP Servers

for alternative options.

Description

Combining concentrated 1U compute power, HP Insight Control, and essential fault tolerance, the HP ProLiant DL360 G7 is optimized for space constrained installations. Latest Intel Xeon 5600 Series Processors (six and four core), with choice of DDR3 Registered or Unbuffered DIMMs, Serial Attached SCSI (SAS) and PCI Express Gen2 technology provide a high performance system, ideal for the full range of scale out applications.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Family:
ProLiant
Product Series:
DL360 G7
Product Model:
633777-371
Product Name:
ProLiant DL360 G7 633777-371 Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5645
Processor Core:
Hexa-core
Processor Speed:
2.40 GHz
Cache:
12 MB
QuickPath Interconnect:
5.86 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
5520

Memory

Standard Memory:
  • 6 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
18
Memory Card Reader:
Yes
Memory Card Supported:
  • Secure Digital (SD) Card

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 1+0, 5, 5+0

I/O Expansions

Number of Internal 2.5" Bays:
4
Number of Total Expansion Slots:
2
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
1

Display & Graphics

Graphics Controller Manufacturer:
  • ATI
Graphics Controller Model:
  • ES1000
Graphics Memory Capacity:
  • 32 MB

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Network (RJ-45):
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Number of Power Supplies Installed:
1
Maximum Power Supply Wattage:
460 W

Miscellaneous

Package Contents:
  • ProLiant DL360 G7 633777-371 Entry-level Server
  • High Voltage Server to PDU Power Cord
    • Compatibility:
  • Oracle Solaris
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
    • Certifications & Standards:
  • ACPI 2.0b Compliant
  • PCI 2.2 Compliant
  • PXE Support
  • WOL Support
  • Microsoft Logo Certifications
  • SMBIOS 2.6.1
  • FCC Rating: Class A
  • CISPR 22
  • EN55022
  • EN55024
  • FCC CFR 47, Pt 15
  • ICES-003
  • CNS13438
  • GB9254
  • K22
  • K24
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 60950-1
  • IEC 60950-1
    • Green Compliant:
    Yes
    Green Compliance Certificate/Authority:
    • 80 Plus
    • WEEE

    Physical Characteristics

    Form Factor:
    Rack
    Rack Height:
    1U
    Height:
    43.0 mm
    Width:
    426.0 mm
    Depth:
    692.0 mm

    Warranty

    Standard Warranty:
    3 Year Limited
