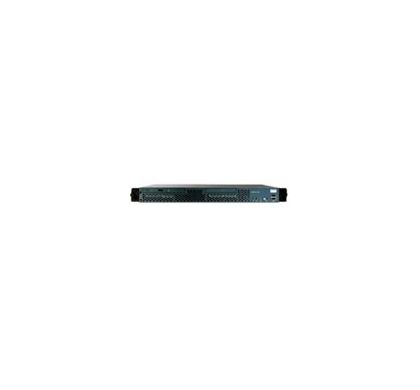

CISCO MCS7825I5-K9-UCC2 1U Rack Server - 1 x Intel Xeon X3430 2.40 GHz

MCS7825I5-K9-UCC2

This product has been discontinued by the manufacturer

Please visit

CISCO Servers

for alternative options.

Description

The Cisco MCS 7825-I5 Media Convergence Server is an entry-level server platform used for Cisco Unified Communications Solutions. An integral part of a complete, scalable architecture for a new generation of high-quality IP voice solutions that run on enterprise data networks, the Cisco MCS 7825-I5 is an easily deployed, cost-effective solution that delivers the high performance and availability demanded by today's enterprise networks.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
7800
Product Model:
MCS7825I5-K9-UCC2
Product Name:
MCS7825I5-K9-UCC2 Media Convergence Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
X3430
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.40 GHz
Cache:
8 MB
64-bit Processing:
Yes
Hyper-Threading:
No

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
32 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
6

Storage

Number of Hard Drives:
2
Total Hard Drive Capacity:
500 GB
Hard Drive Interface:
Serial ATA
Hard Drive RPM:
7200
Hard Drive Configuration:
2 x 250 GB

Controllers

Controller Type:
  • Serial ATA
RAID Supported:
Yes
RAID Levels:
  • 1

I/O Expansions

Number of 3.5" Bays:
2
Number of PCI Express Slots:
2

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports:
7
Number of USB 2.0 Ports:
7
Network (RJ-45):
Yes
VGA:
Yes
Remote Management:
Yes

Software

Operating System:
No

Power Description

Maximum Power Supply Wattage:
351 W

Physical Characteristics

Form Factor:
Rack
Rack Height:
1U
Height:
43.0 mm
Width:
440.0 mm
Depth:
559.0 mm
Weight (Approximate):
12.70 kg

Warranty

Standard Warranty:
1 Year
