CISCO Blade Server - 2 x Intel Xeon E5-2640 v2 2 GHz - 2 Processor Support - 128 GB Standard/768 GB Maximum RAM - Serial Attached SCSI (SAS) RAID Supported Controller - 10 Gigabit Ethernet - RAID Level: 0, 1

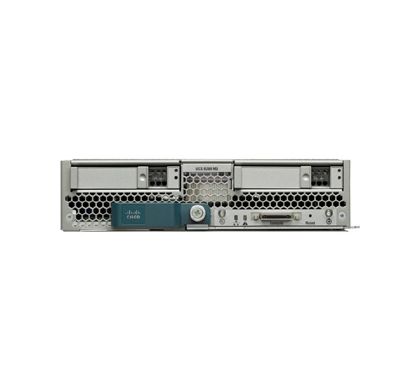

CISCO UCS B200 M3 Blade Server UCS-EZ7-B200-V
UCS-EZ7-B200-V

This product has been discontinued by the manufacturer

Please visit

CISCO Servers

for alternative options.

Description

Density and Performance without CompromiseDelivering performance, versatility, and density without compromise, the Cisco UCS B200 M3 Blade Server addresses the broadest set of workloads, from IT and web infrastructure to distributed database.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
B200 M3
Product Name:
UCS B200 M3 Blade Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
2
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E5-2640 v2
Processor Core:
Octa-core (8 Core)
Processor Speed:
2 GHz
Maximum Turbo Speed:
2.50 GHz
Cache:
20 MB
QuickPath Interconnect:
7.20 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes

Memory

Standard Memory:
  • 128 GB
Maximum Memory:
768 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1866/PC3-14900
Number of Total Memory Slots:
24

Storage

Number of Hard Drives:
No

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1

I/O Expansions

Number of Total Expansion Bays:
2
Number of Internal 2.5" Bays:
2

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet

Interfaces/Ports

Network (RJ-45):
Yes

Software

Operating System:
No

Miscellaneous

Certifications & Standards:
Regulatory Compliance:
  • Products should comply with CE Markings according to directives 2004/108/EC and 2006/108/EC
Safety:
  • UL 60950-1 No. 21CFR1040 Second Edition
  • CAN/CSA-C22.2 No. 60950-1 Second Edition
  • IEC 60950-1 Second Edition
  • EN 60950-1 Second Edition
  • IEC 60950-1 Second Edition
  • AS/NZS 60950-1
  • GB4943 2001
EMC: Emissions:
  • 47CFR Part 15 (CFR 47) Class A
  • AS/NZS CISPR22 Class A
  • CISPR2 2 Class A
  • EN55022 Class A
  • ICES003 Class A
  • VCCI Class A
  • EN61000-3-2
  • EN61000-3-3
  • KN22 Class A
  • CNS13438 Class A
EMC: Immunity:
  • EN55024
  • CISPR24
  • EN300386
  • KN24

Physical Characteristics

Form Factor:
Blade
