CISCO Blade Server - 2 x Intel Xeon 2.40 GHz - 2 Processor Support - 256 GB Standard/512 GB Maximum RAM - Serial Attached SCSI (SAS) RAID Supported Controller - 10 Gigabit Ethernet - RAID Level: 0, 1

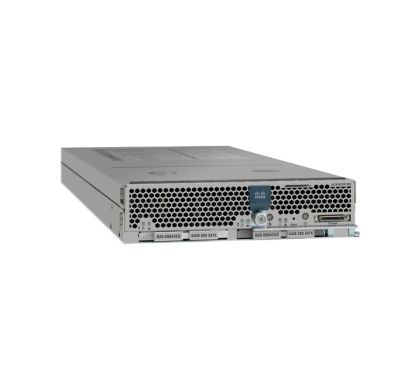

CISCO UCS B230 M2 Blade Server UCS-EZ-B230-EX256
UCS-EZ-B230-EX256

This product has been discontinued by the manufacturer

Please visit

CISCO Servers

for alternative options.

Description

High Performance Efficiency, Compact SizeThe Cisco UCS B230 M2 Blade Server extends the capabilities of the Cisco Unified Computing System and delivers new levels of performance, efficiency, and reliability. With the Intel® Xeon® processor E7-2800 product family, the 2-socket Cisco UCS B230 M2 Blade Server platform delivers high performance and density in a compact, half-width form factor.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
B230 M2
Product Name:
UCS B230 M2 Blade Server
Product Type:
Server

Processor & Chipset

Number of Processors Supported:
2
Number of Processors Installed:
2
Processor Manufacturer:
Intel
Processor Type:
Xeon
Processor Model:
E7-2870
Processor Core:
Deca-core (10 Core)
Processor Speed:
2.40 GHz
Cache:
30 MB
QuickPath Interconnect:
6.40 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
Chipset Manufacturer:
Intel
Chipset Model:
7510

Memory

Standard Memory:
  • 256 GB
Maximum Memory:
512 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
32

Storage

Number of Hard Drives:
No
Number of Solid State Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial Attached SCSI (SAS)
RAID Supported:
Yes
RAID Levels:
  • 0, 1

I/O Expansions

Number of Total Expansion Bays:
2
Number of Internal 2.5" Bays:
2
Number of Total Expansion Slots:
1

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet

Interfaces/Ports

Network (RJ-45):
Yes

Miscellaneous

Certifications & Standards:
  • CISPR 22 Class A
  • BSMI CNS 13438 Class A
  • CISPR 24
  • EN 61000-3-2
  • VCCI Class A ITE
  • EN 61000-3-3
  • EN55024
  • EN55022 Class A
  • EN50082-1
  • EN 61000-6-1
  • AS/NZS 60950-1
  • EMC
  • ICES-003 Class A
  • FCC CFR47 Part 15
  • EN300-386
  • UL 60950-1
  • IEC 60950-1
  • EN 60950-1
  • CSA C22.2 No. 60950-1
  • GB 4943

Physical Characteristics

Form Factor:
Blade
Height:
50.8 mm
Width:
203.2 mm
Depth:
619.8 mm
Weight (Approximate):
8.21 kg

Warranty

Standard Warranty:
3 Year
