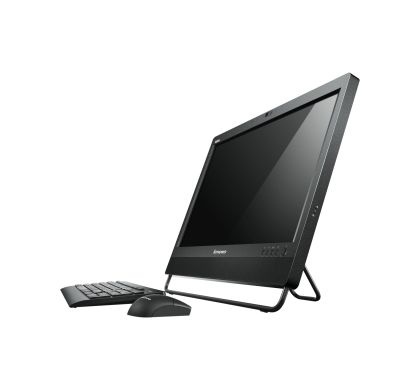

LENOVO ThinkCentre Edge 3396B1M All-in-One Computer - Intel Core i5 i5-3470S 2.90 GHz - Desktop - Business Black

3396B1M LENOVO ThinkCentre Edge 3396B1M All-in-One Computer - Intel Core i5 i5-3470S 2.90 GHz - Desktop - Business Black
3396B1M

This product has been discontinued by the manufacturer

Please visit

LENOVO Desktop Computers

for alternative options.

Description

BUSINESS AND ELEGANCE ALL IN ONE.Maximise your office space and minimise your power use, while still enjoying legendary Lenovo service and the powerful application performance you expect from a ThinkCentre Edge business PC.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Family:
ThinkCentre Edge
Product Series:
92z
Product Model:
3396B1M
Product Name:
ThinkCentre Edge 92z 3396B1M All-in-One Computer
Product Type:
All-in-One Computer

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
Intel
Processor Type:
Core i5
Processor Model:
i5-3470S
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.90 GHz
Cache:
6 MB
Direct Media Interface:
5 GT/s
64-bit Processing:
Yes
Hyper-Threading:
No
Chipset Manufacturer:
Intel
Chipset Model:
B75 Express

Memory

Standard Memory:
  • 4 GB
Maximum Memory:
16 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1600/PC3-12800
Number of Total Memory Slots:
2
Memory Card Reader:
Yes
Memory Card Supported:
  • Secure Digital (SD) Card

Storage

Total Hard Drive Capacity:
500 GB
Hard Drive Interface:
Serial ATA/600
Hard Drive RPM:
7200
Optical Drive Type:
DVD-Writer
Optical Media Supported:
DVD-RAM/±R/±RW
Dual-Layer Media Supported:
Yes

Controllers

Controller Type:
  • Serial ATA

Display & Graphics

Screen Size:
54.6 cm (21.5")
Display Screen Type:
Active Matrix TFT Colour LCD
Backlight Technology:
LED
Screen Mode:
Full HD
Screen Resolution:
1920 x 1080
Aspect Ratio:
16:9
Touchscreen:
No
Graphics Controller Manufacturer:
  • Intel
Graphics Controller Model:
  • HD 2500
Graphics Memory Technology:
  • DDR3 SDRAM
Graphics Memory Accessibility:
  • Shared

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Wi-Fi:
Yes
Wi-Fi Standard:
  • IEEE 802.11b/g/n
Bluetooth:
Yes

I/O Expansions

Number of Total Expansion Slots:
2
Number of Mini PCI Express Slots:
2

Input Devices

Keyboard:
Yes
Pointing Device Type:
  • Mouse

Built-in Devices

Webcam:
Yes
Microphone:
Yes

Interfaces/Ports

HDMI:
Yes
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Number of mSATA Interfaces:
1

Software

Operating System:
Genuine Windows 7 Professional
Operating System Architecture:
64-bit

Power Description

Maximum Power Supply Wattage:
150 W

Physical Characteristics

Colour:
  • Business Black
Form Factor:
Desktop
Height:
414.0 mm
Width:
546.0 mm
Depth:
81.0 mm
Weight (Approximate):
8.39 kg

Miscellaneous

Package Contents:
  • ThinkCentre Edge 92z 3396B1M All-in-One Computer
  • Keyboard
  • Mouse
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star 5.2
  • RoHS
