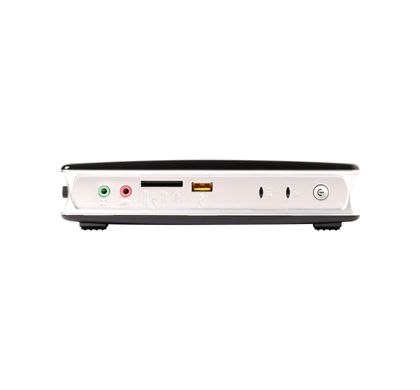

ATEN Zotac ZBOX ZBOX-AD06 Nettop Computer - AMD E-Series E2-1800 1.70 GHz - AMD Radeon HD 7340 Graphics - Wireless LAN - Bluetooth

ATEN Nettop Computer ZBOX-AD06
ZBOX-AD06

This product has been discontinued by the manufacturer

Please visit

ATEN Desktop Computers

for alternative options.

Description

Raise your performance expectations for energy-efficient computing with the digital media friendly ZOTAC ZBOX AD06 Plus mini-PC powered by the AMD E2-1800 APU platform. Paired with AMD RadeonTM Discrete-Class Graphics, the ZOTAC ZBOX AD06 Plus delivers the perfect synergy of GPU and CPU performance for a rich multimedia computing experience with flawless high-definition video playback capabilities and ultra-fast responsiveness for regular day-to-day computing tasks.

Specifications

General Information

Manufacturer:
ZOTAC International
Manufacturer Website Address:
http://www.zotac.com/au/
Brand Name:
Zotac
Product Family:
ZBOX
Product Model:
ZBOX-AD06
Product Name:
ZBOX-AD06 Nettop Computer
Product Type:
Nettop Computer

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
AMD
Processor Type:
E-Series
Processor Model:
E2-1800
Processor Core:
Dual-core (2 Core)
Processor Speed:
1.70 GHz
Cache:
1 MB
64-bit Processing:
Yes
Chipset Manufacturer:
AMD
Chipset Model:
A68M

Memory

Standard Memory:
  • No
Maximum Memory:
8 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
2
Memory Card Reader:
Yes
Memory Card Supported:
  • Memory Stick
  • Memory Stick PRO
  • MultiMediaCard (MMC)
  • Secure Digital (SD) Card
  • Secure Digital High Capacity (SDHC)
  • xD-Picture Card

Storage

Number of Hard Drives:
No

Display & Graphics

HDCP Supported:
Yes
Graphics Controller Manufacturer:
  • AMD
Graphics Controller Model:
  • Radeon HD 7340
Graphics Memory Technology:
  • DDR3 SDRAM
Graphics Memory Accessibility:
  • Shared

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Wi-Fi:
Yes
Wi-Fi Standard:
  • IEEE 802.11b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 3.0

Interfaces/Ports

HDMI:
Yes
DVI:
Yes
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes

Software

Operating System:
No

Physical Characteristics

Height:
188.0 mm
Width:
188.0 mm
Depth:
43.9 mm
