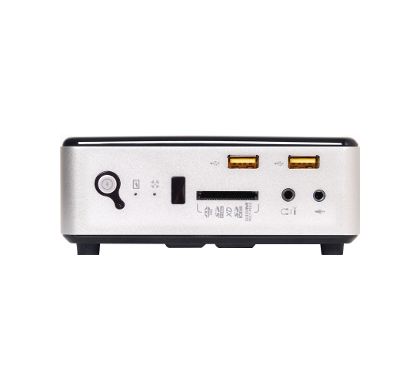

ATEN Zotac ZBOX nano AD12 Nettop Computer - AMD E-Series E2-1800 1.70 GHz - Mini PC - AMD Radeon HD 7340 Graphics - Wireless LAN - Bluetooth

ATEN ZBOX nano AD12 Nettop Computer ZBOXNANO AD12
ZBOXNANO AD12

This product has been discontinued by the manufacturer

Please visit

ATEN Desktop Computers

for alternative options.

Description

Raise your performance expectations for energy-efficient computing with the palm-sized ZOTAC ZBOX nano AD12 mini-PC powered by the AMD E2-1800 APU. Paired with AMD Radeon™ HD 7340 graphics, the ZOTAC ZBOX nano AD12 delivers the perfect synergy of GPU and CPU performance for a rich multimedia computing experience with flawless high-definition video playback capabilities and ultra-fast responsiveness for regular day-to-day computing tasks.

Specifications

General Information

Manufacturer:
ZOTAC International
Manufacturer Website Address:
http://www.zotac.com/au/
Brand Name:
Zotac
Product Family:
ZBOX nano
Product Model:
AD12
Product Name:
ZBOX nano AD12 Nettop Computer
Product Type:
Nettop Computer

Processor & Chipset

Number of Processors Supported:
1
Number of Processors Installed:
1
Processor Manufacturer:
AMD
Processor Type:
E-Series
Processor Model:
E2-1800
Processor Core:
Dual-core (2 Core)
Processor Speed:
1.70 GHz
Cache:
1 MB
Chipset Manufacturer:
AMD
Chipset Model:
A68M

Memory

Standard Memory:
  • No
Maximum Memory:
8 GB
Memory Technology:
DDR3 SDRAM
Memory Standard:
  • DDR3-1333/PC3-10600
Number of Total Memory Slots:
1
Memory Card Reader:
Yes
Memory Card Supported:
  • Memory Stick
  • Memory Stick PRO
  • MultiMediaCard (MMC)
  • Secure Digital (SD) Card
  • Secure Digital Extended Capacity (SDXC)
  • Secure Digital High Capacity (SDHC)
  • xD-Picture Card

Storage

Number of Hard Drives:
No
Optical Drive Type:
No

Controllers

Controller Type:
  • Serial ATA/600

Display & Graphics

HDCP Supported:
Yes
Graphics Controller Manufacturer:
  • AMD
Graphics Controller Model:
  • Radeon HD 7340
Graphics Memory Technology:
  • DDR3 SDRAM
Graphics Memory Accessibility:
  • Shared

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Wi-Fi:
Yes
Wi-Fi Standard:
  • IEEE 802.11b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 3.0

I/O Expansions

Number of Total Expansion Bays:
1
Number of Internal 2.5" Bays:
1

Interfaces/Ports

HDMI:
Yes
FireWire/i.LINK:
No
DVI:
No
Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
eSATA:
Yes
DisplayPort:
Yes

Software

Operating System:
No

Physical Characteristics

Form Factor:
Mini PC
Height:
45.0 mm
Width:
127.0 mm
Depth:
127.0 mm

Miscellaneous

Package Contents:
  • 1 x ZBOX nano AD12 Nettop Computer
  • 1 x MCE Compatible Remote
  • 2 x CR2032 Batteries (for remote)
  • 1 x USB IR Receiver
  • 1 x WiFi Antenna
  • 1 x VESA Mount
  • 1 x AC Adapter
  • 1 x Power Cord
  • 1 x Warranty Card
  • 1 x User Manual
  • 1 x Driver CD
  • 1 x mini-Optical to Optical Adapter
Media Center Computing:
Yes

Warranty

Standard Warranty:
1 Year
