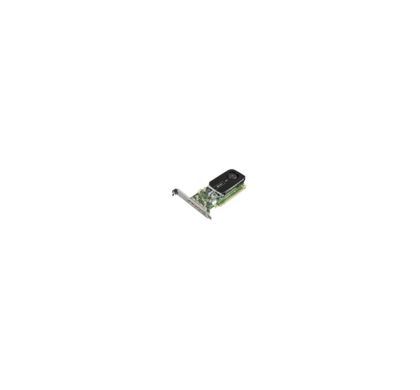

LENOVO Quadro NVS 510 Graphic Card - 2 GB - PCI Express 2.0 x16 - Low-profile

0B47077

This product has been discontinued by the manufacturer

Please visit

LENOVO Graphic Cards

for alternative options.

Description

The NVIDIA NVS 510 offers the latest in graphics and display technologies along with industry-leading, multi-display management capabilities in a power-friendly, low-profile form factor. This makes it the ideal graphics solution for professionals who need to efficiently visualize and digest a great deal of information in the financial trading, command and control, and digital-signage markets. Four compact mini DisplayPort connectors with a custom built-in retention mechanism, let the NVIDIA NVS 510 drive ultra-high resolution displays up to 3,840 x 2,160 at 60Hz. Plus, it supports advanced DisplayPort 1.2 features like Multi-Stream Technology and Stream Cloning, which enables efficient cable management, as well as cost-effective multi-display installations.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Name:
Quadro NVS 510 Graphic Card
Product Type:
Graphic Card

Technical Information

Maximum Resolution:
3840 x 2160
Digital Signal:
Yes

Processor & Chipset

Chipset Manufacturer:
NVIDIA
Chipset Line:
Quadro
Chipset Series:
NVS
Chipset Model:
NVS 510

Memory

Standard Memory:
  • 2 GB

Interfaces/Ports

Host Interface:
  • PCI Express 2.0 x16
DisplayPort:
Yes
Number of DisplayPort Outputs:
4

Physical Characteristics

Form Factor:
Plug-in Card
Card Height:
  • Low-profile
Height:
69.1 mm
Length:
160 mm

Miscellaneous

Platform Supported:
  • PC
