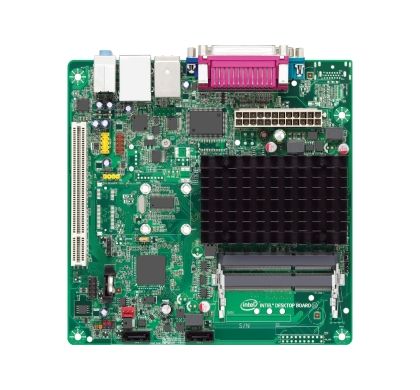

INTEL Innovation D2500HN Desktop Motherboard - NM10 Express Chipset - 10 x Bulk Pack - Mini ITX - 4 GB DDR3 SDRAM Maximum RAM - Serial ATA/300 - On-board Video Chipset

INTEL Innovation D2500HN Desktop Motherboard BLKD2500HN
BLKD2500HN

This product has been discontinued by the manufacturer

Please visit

INTEL Motherboards

for alternative options.

Description

Intel Desktop Board D2500HN is integrated with the new Intel Atom processor D2500 and the Intel NM10 Express Chipset to offer an entry-level desktop computer system. The board features a 10/100/1000 integrated Intel LAN, full legacy features and Intel High Definition Audio.

Specifications

General Information

Manufacturer:
Intel Corporation
Manufacturer Website Address:
http://www.intel.com.au
Brand Name:
Intel
Product Family:
Innovation
Product Model:
D2500HN
Product Name:
Innovation D2500HN Desktop Motherboard
Packaged Quantity:
10
Package Type:
Bulk
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
NM10 Express
64-bit Processing:
Yes

Integrated Processor

Integrated Processor Manufacturer:
Intel
Integrated Processor Type:
Atom
Integrated Processor Model:
D2500
Integrated Processor Speed:
1.86 GHz
Integrated Processor Cache:
1 MB
Integrated Processor Core:
Dual-core (2 Core)

Memory

Number of Memory Slots:
2
Memory Form Factor:
SoDIMM
Maximum Memory:
4 GB
Memory Standard:
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
Memory Technology:
DDR3 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/300

Video

Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
  • Intel
Graphics Controller Model:
  • GMA 3600

Audio

Sound Controller Manufacturer:
Intel
Audio Channels:
3.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
1
Number of PCI Slots:
1

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Parallel Port:
Yes
Serial Port:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
VGA:
Yes
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
1

Onboard Interfaces

Number of SATA Interfaces:
2
Total Number of Onboard USB Ports:
4
Number of Onboard USB 2.0 Ports:
4
Onboard Serial Header:
Yes
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes

Power Description

Power Supply Supported:
EPS12V

Physical Characteristics

Form Factor:
Mini ITX
Width:
170.0 mm
Depth:
170.0 mm

Miscellaneous

Certifications & Standards:
  • United States and Canada: UL 60950-1
  • Canada: CAN/CSA-C22.2No.60950-1
  • Europe: EN 60950-1
  • International: IEC60950-1
  • EMC Regulations: (Class B)
  • Australia/New Zealand: EN 55022
  • Japan: VCCI V-3, V-4
  • South Korea: KN-22 and KN-24
  • Taiwan: CNS 13438
  • International: CISPR 22
United States:
  • FCC CFR Title 47
  • Chapter I
  • Part 15
  • Subparts A/B
  • Canada: ICES-003
Europe:
  • (EMC Directive2004/108/EC)
  • EN 55022 and EN 55024
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • China RoHS
  • RoHS
