INTEL Classic DH61HO Desktop Motherboard - H61 Express Chipset - Socket H2 LGA-1155 - 1 x Retail Pack - Micro ATX - 1 x Processor Support - 16 GB DDR3 SDRAM Maximum RAM - Serial ATA/300 - CPU Dependent Video - 1 x PCIe x16 Slot

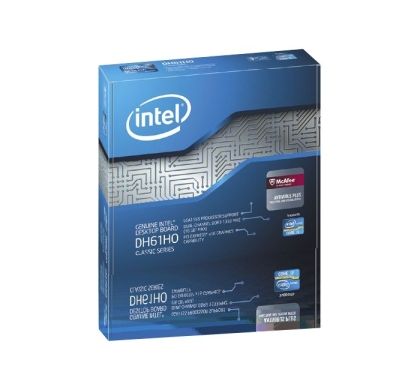

INTEL Classic DH61HO Desktop Motherboard BOXDH61HO
BOXDH61HO

This product has been discontinued by the manufacturer

Please visit

INTEL Motherboards

for alternative options.

Description

Explore the great multitasking performance of the Intel® Desktop Board DH61HO. Designed with affordability in mind to support 2nd and 3rd generation Intel® Core™ processors in the LGA1155 socket and offered in the micro-ATX form factor, it is populated with a PCI *Express 3.0* x16 slot, 2 DIMMs slots for DDR3 memory, and VGA display capabilities allowing you to build a feature-rich system with expansion capabilities. The Intel® Turbo Boost Technology 2.0 and enhanced Intel® Hyper-Threading Technology, provides smarter performance and a seamless visual experience.

Specifications

General Information

Manufacturer:
Intel Corporation
Manufacturer Website Address:
http://www.intel.com.au
Brand Name:
Intel
Product Family:
Classic
Product Model:
DH61HO
Product Name:
Classic DH61HO Desktop Motherboard
Packaged Quantity:
1
Packing:
  • Box
Package Type:
Retail
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
H61 Express
Total Processor Supported:
1
Processor Technology:
  • Hyper-Threading Technology
  • Turbo Boost Technology 2.0
Processor Socket:
Socket H2 LGA-1155
Processor Supported:
  • Celeron Dual-Core
  • Core i3
  • Core i5
  • Core i7
  • Pentium Dual-core
  • Xeon Dual-Core
64-bit Processing:
Yes

Memory

Number of Memory Slots:
2
Memory Form Factor:
UDIMM
Maximum Memory:
16 GB
Memory Standard:
  • DDR3-1066/PC3-8500
  • DDR3-1333/PC3-10600
  • DDR3-800/PC3-6400
Memory Technology:
DDR3 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/300
RAID Supported:
No

Video

Onboard Video:
CPU Dependent Video
Graphics Controller Manufacturer:
  • Intel
Graphics Memory Technology:
  • DDR3 SDRAM
Graphics Memory Accessibility:
  • Shared

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC892
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
3
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
3
Number of PCI Express x1 Slots:
2
Number of PCI Express x16 Slots:
1

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
VGA:
Yes
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
2

Onboard Interfaces

Number of SATA Interfaces:
2
Total Number of Onboard USB Ports:
4
Number of Onboard USB 2.0 Ports:
4
Onboard Serial Header:
Yes
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes

Power Description

Power Supply Supported:
EPS12V

Physical Characteristics

Form Factor:
Micro ATX
Width:
225.0 mm
Depth:
190.0 mm

Miscellaneous

Package Contents:
  • Classic DH61HO Desktop Motherboard
  • 2 x Cable, Serial ATA
  • 1 x DVD, Express Installer
  • 1 x Configuration label
  • 1 x I/O Shield
  • 1 x Integration Guide (Poster)
Certifications & Standards:
  • CSA/UL 60950-1
  • EN 60950-1
  • IEC 60950-1
  • FCC 47 CFR Part 15, Subpart B
  • ICES-003 Class B
  • EN 55022
  • EN 55024
  • EN 55022 Class B
  • VCCI V-3
  • V-4 Class B
  • KN-22
  • KN-24
  • CNS 13438 Class B
  • CISPR 22 Class B
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • China RoHS
  • RoHS
