GIGABYTE Ultra Durable 4 Classic GA-H61MA-D3V Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155 - Micro ATX - 1 x Processor Support - 16 GB DDR3 SDRAM Maximum RAM - Serial ATA/300, Serial ATA/600 - CPU Dependent Video - 1 x PCIe x16 Slo

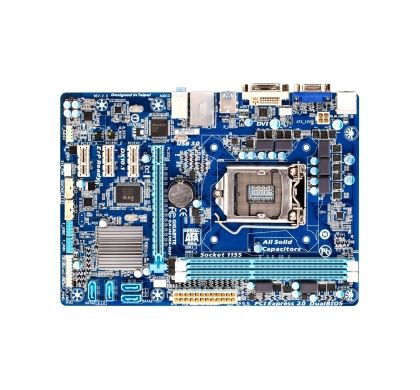

GIGABYTE Ultra Durable 4 Classic Desktop Motherboard GA-H61MA-D3V
GA-H61MA-D3V

This product has been discontinued by the manufacturer

Please visit

GIGABYTE Motherboards

for alternative options.

Description

GIGABYTE Ultra Durable 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.

Specifications

General Information

Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Website Address:
www.gigabyte.com
Brand Name:
Gigabyte
Product Family:
Ultra Durable 4 Classic
Product Model:
GA-H61MA-D3V
Product Name:
Ultra Durable 4 Classic GA-H61MA-D3V Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
H61 Express
Total Processor Supported:
1
Processor Technology:
  • Enhanced SpeedStep Technology
  • Hyper-Threading Technology
  • Virtualization Technology
Processor Socket:
Socket H2 LGA-1155
Processor Supported:
  • Celeron Dual-Core
  • Core i3
  • Core i5
  • Core i7
  • Pentium Dual-core
64-bit Processing:
Yes

Memory

Number of Memory Slots:
2
Memory Form Factor:
DIMM
Maximum Memory:
16 GB
Memory Standard:
  • DDR3-1066/PC3-8500
  • DDR3-1333/PC3-10600
  • DDR3-800/PC3-6400
Memory Technology:
DDR3 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/300
  • Serial ATA/600
RAID Supported:
No

Video

Onboard Video:
CPU Dependent Video

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC887
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
PCI Express Standard:
  • PCI Express 2.0
  • PCI Express 3.0
Total Number of PCI Express Slots:
4
Number of PCI Express x1 Slots:
3
Number of PCI Express x16 Slots:
1

Interfaces/Ports

Total Number of USB Ports:
6
Number of USB 2.0 Ports:
4
Number of USB 3.0 Ports:
2
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
VGA:
Yes
DVI:
Yes
Number of DVI Outputs:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
1

Onboard Interfaces

Number of SATA Interfaces:
6
Total Number of Onboard USB Ports:
4
Number of Onboard USB 2.0 Ports:
4
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes

Power Description

Power Supply Supported:
EPS12V

Physical Characteristics

Form Factor:
Micro ATX
Width:
244.0 mm
Depth:
174.0 mm

Miscellaneous

Package Contents:
  • Ultra Durable 4 Classic GA-H61MA-D3V Desktop Motherboard
  • Motherboard Driver Disk
  • User's Manual
  • I/O Shield
  • 2 x SATA Cables
Certifications & Standards:
  • ErP Lot 6
  • FCC
  • CE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • WEEE
