GIGABYTE Ultra Durable 4 Classic GA-H61M-S2PV Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155

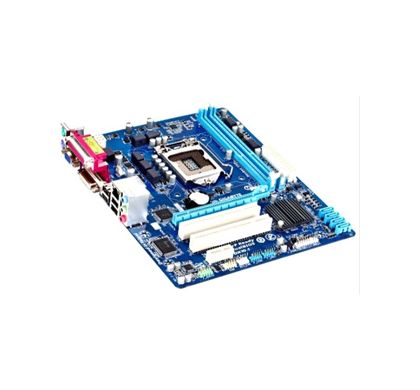

GIGABYTE Ultra Durable 4 Classic GA-H61M-S2PV Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155 Left
GA-H61M-S2PV

This product has been discontinued by the manufacturer

Please visit

GIGABYTE Motherboards

for alternative options.

Description

GIGABYTE Ultra Durable 4 Classic motherboards embrace a range of exclusive features that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats users encounter on a day-to-day basis.

Specifications

General Information

Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Website Address:
www.gigabyte.com
Brand Name:
Gigabyte
Product Family:
Ultra Durable 4 Classic
Product Series:
6
Product Model:
GA-H61M-S2PV
Product Name:
Ultra Durable 4 Classic 6-series GA-H61M-S2PV Desktop Motherboard
Packing:
  • Box
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
H61 Express
Total Processor Supported:
1
Processor Technology:
  • Enhanced SpeedStep Technology
  • Turbo Boost Technology
Processor Socket:
Socket H2 LGA-1155
Processor Supported:
  • Celeron Dual-Core
  • Core i3
  • Core i5
  • Core i7
  • Pentium Dual-core
64-bit Processing:
Yes

Memory

Number of Memory Slots:
2
Memory Form Factor:
DIMM
Maximum Memory:
16 GB
Memory Standard:
  • DDR3-1066/PC3-8500
  • DDR3-1333/PC3-10600
  • DDR3-800/PC3-6400
Memory Technology:
DDR3 SDRAM

I/O Controller

Controller Type:
  • Serial ATA/300
RAID Supported:
No

Video

Onboard Video:
CPU Dependent Video

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC887
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
Number of PCI Slots:
2
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
2
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
1

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Parallel Port:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
VGA:
Yes
DVI:
Yes
Number of DVI Outputs:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
2

Onboard Interfaces

Number of SATA Interfaces:
4
Total Number of Onboard USB Ports:
4
Number of Onboard USB 2.0 Ports:
4
Onboard Serial Header:
Yes
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes

Power Description

Power Supply Supported:
EPS12V

Physical Characteristics

Form Factor:
Micro ATX
Width:
244.0 mm
Depth:
200.0 mm
