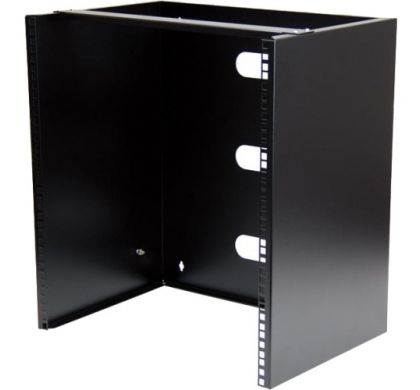

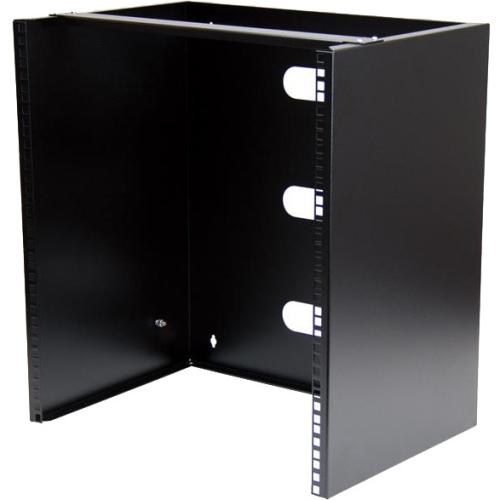

STARTECH .com 12U 449.58 mm Wide Wall Mountable Rack Frame for Patch Panel, LAN Switch - Black

Retail price: $497.19
$492.25
(Includes GST) You save: $4.94 (1%) Save 1%
WALLMNT12
Available
+
Add to favourites

Description

Mount equipment that is up to 12 inches deep, such as patch panels or network switches, to your wall. This wall-mount bracket provides 12U of space for mounting shallow rack-mount equipment that's 12 in. deep or less to the wall, such as patch panels or network switches.

Improve efficiency and accessibility in your workspace

The 12U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.

Ensure a secure and hassle-free installation

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall-mount rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. The rack also features a rear access panel that can be used to easily run cabling into the rack.

Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.

If you're looking for a shallow mounting solution with fewer rack units, StarTech.com also offers a 6U wall-mount bracket, and an 8U wall-mount bracket.

The WALLMNT12 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
12U 12in Deep Wall Mounting Bracket for Patch Panel - Wall Mount Bracket
Product Type:
Rack Frame

Technical Information

Application/Usage:
  • Patch Panel
  • LAN Switch

Physical Characteristics

Form Factor:
Wall Mountable
Colour:
  • Black
Material:
  • Steel
Maximum Weight Capacity:
56.84 kg
Height:
541 mm
Width:
520.7 mm
Depth:
304.8 mm
Rack Height:
12U
Rack Width:
449.58 mm
