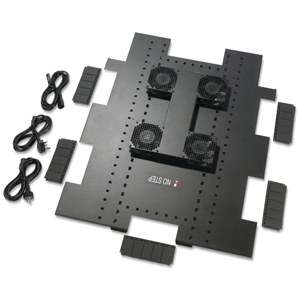

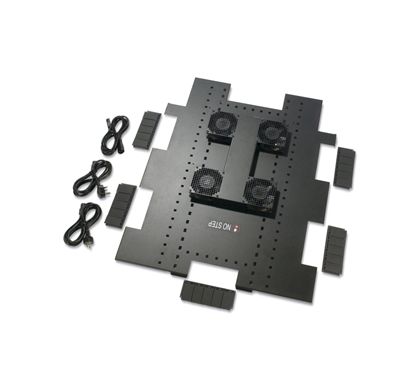

APC ACF504 Fan Tray

APC ACF504 Fan Tray
ACF504
Please Call
Please contact us for pricing

Description

Roof Fan Tray for NetShelter SX 750mm Enclosures features innovative design allows for fast, easy installation by almost anybody and helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
ACF504
Product Name:
Roof Fan Tray for NetShelter SX 750mm Enclosures
Product Type:
Fan Tray

Technical Information

Maximum Air Flow:
12.5 m³/min
Maximum Noise Level:
62 dB(A)

Power Description

Input Voltage:
  • 220 V AC

Physical Characteristics

Colour:
  • Black
Height:
60 mm
Width:
724 mm
Depth:
893 mm
Weight (Approximate):
10.23 kg

Miscellaneous

Package Contents:
  • Roof Fan Tray for NetShelter SX 750mm Enclosures
  • Installation guide
Additional Information:
  • Cools by exhausting heat out of the roof of the rack
  • Audible noise at 1 meter from surface of unit
Input Connections:
  • IEC-320 C14
  • Schuko CEE 7/7P
Compatibility:
NetShelter SX 750mm Enclosures
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
2 Year
