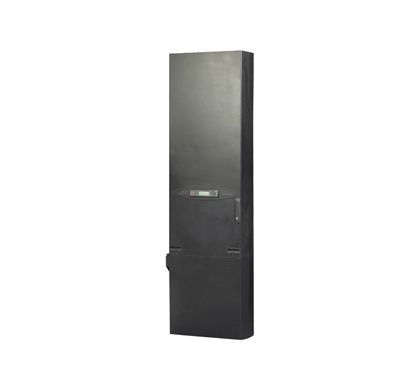

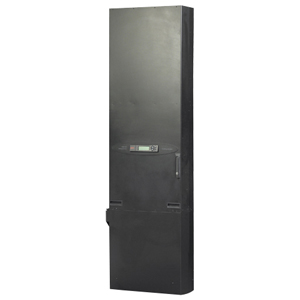

APC ACF400 Airflow Cooling System

APC ACF400 Airflow Cooling System
ACF400
Please Call
Please contact us for pricing

Description

High-density equipment creates an environment where traditional air distribution methods are often not effective. Densely packed enclosures can cause IT equipment to overheat, resulting in downtime. The ACF400 Airflow Cooling System captures exhaust heat, returns the warm air to the plenum and eliminates hot spots from the data center. Through automatic fan speed control based upon temperature, the fans will self-adjust for optimal performance.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
ACF400
Product Name:
ACF400 Airflow Cooling System
Product Type:
Airflow Cooling System

Technical Information

Cooling Capacity:
16.50 kW
Maximum Air Flow:
755.12 L/s
Application/Usage:
  • IT
Plug Type:
NEMA 5-15P

Controls/Indicators

Indicators & Controls:
Multi-function LCD status and control console

Power Description

Input Voltage:
  • 230 V AC
Power Consumption:
  • 1200 W

Physical Characteristics

Form Factor:
Tower
Colour:
  • Black
Height:
1918 mm
Width:
597 mm
Depth:
254 mm
Weight (Approximate):
67.26 kg

Miscellaneous

Package Contents:
  • ACF400 Airflow Cooling System
  • Documentation CD
  • Installation Guide
  • Operations and Maintenance Manual
Certifications & Standards:
  • cUL Listed
  • CE
  • EN 55022 Class A
  • EN 55024
  • FCC Part 15 Class A
  • ICES-003
  • IEC 61000-3-2
  • IEC 61000-3-3
  • UL Listed
  • VDE
  • VCCI

Warranty

Standard Warranty:
1 Year
