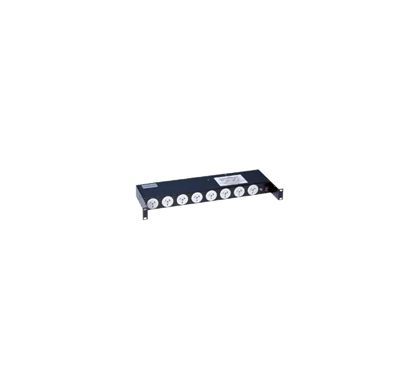

EATON Surge Suppressor - 8 - 275 V AC Input - 275 V AC Output
Description
The SF8RM is designed to protect equipment against power surges & electrical noise whilst providing a convenient combination of power outlets to suit most applications. A unique mounting system allows mounting in many different modes to suit crowded racks. Even if no rack space exists, the units may be mounted externally on the front or rear of the rack. For horizontal mounting, the units require a single 1RU rack space for installation. The unit may also be flush mounted to either side of a rack or cabinet.
Specifications
General Information
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eatoncorp.com.au
Brand Name:
Eaton
Product Name:
Surge Filter, 1 Phase 10A, 25kA Primary
Product Type:
Surge Suppressor
Technical Information
Receptacles:
- 8
Protection Type:
- Surge
- Electrical Noise
- Over Current
- L-N
- L-E
- N-E
- L-N
- L-E
- N-E
Power Description
Input Voltage:
- 220 V AC to 275 V AC
Output Voltage:
- 220 V AC to 275 V AC
Current:
- 10 A Line Current/25 kA Surge Current
Frequency:
- 50 Hz
Physical Characteristics
Height:
44.0 mm
Width:
441.0 mm
Depth:
120.0 mm
Form Factor:
1U Rack-mountable
Weight (Approximate):
1.20 kg
