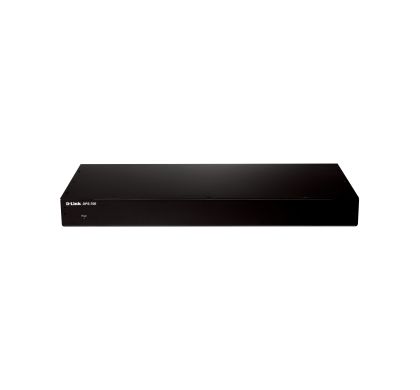

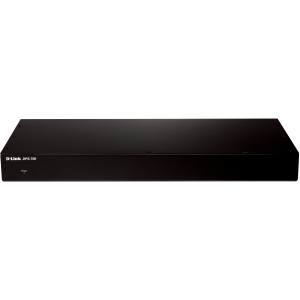

D-LINK DPS-700 Redundant Power Supply - 80% Efficiency - 589 W
Description
The DPS-600 and DPS-700 are 19-inch standard-size rack mount power supplies designed to improve flexibility in supporting PoE (Power over Ethernet) equipment. The DPS-700 also supports 1+1 power capabilities. When cascading the DPS-700 with a device's internal power supply, the power system can provide an additional power budget to the device.
Specifications
General Information
Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DPS-700
Product Name:
DPS-700 Redundant Power Supply
Product Type:
Redundant Power Supply
Technical Information
Efficiency:
80%
Protection Type:
- Over Current
Reliability
MTBF:
624961 Hour
Power Description
Input Voltage Type:
AC
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
- 90 V AC to 264 V AC
Input Current:
- 3.70 A @ 220V
- 7.50 A @ 110V
Output Power:
589 W
Physical Characteristics
Form Factor:
Rack-mountable
Hot Swappable Power Supply:
Yes
Height:
441 mm
Width:
199 mm
Depth:
44 mm
Weight (Approximate):
3.70 kg
Miscellaneous
Compatibility:
D-Link DGS-3120 Series Switches:
- DGS-3120-24PC
- DGS-3120-48PC
- DGS-3120-48PC
