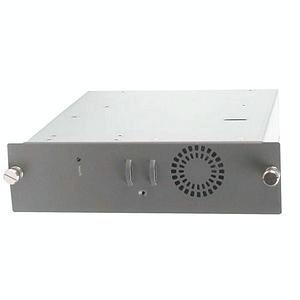

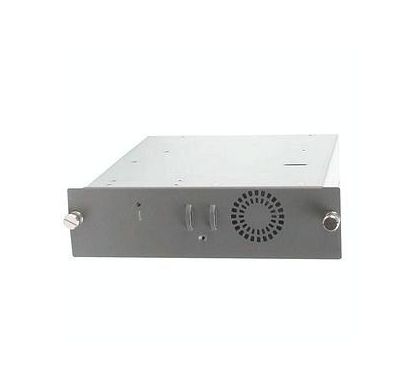

D-LINK DPS-200 Redundant Power Supply - 60 W
Description
The DPS-200 redundant power supply designed for use with D-Link LAN switches. The power supply connects to a switch to provide redundant backup power to the built-in power supply unit inside the switch. The RPS can operate as stand-alone redundant power supply unit.
Specifications
General Information
Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DPS-200
Product Name:
60W Redundant Power Supply
Product Type:
Redundant Power Supply
Reliability
MTBF:
50000 Hour
Power Description
Input Voltage:
- 264 V AC
Input Voltage Range:
- 90 V AC to 264 V AC
Output Voltage:
- 12 V DC
Output Power:
60 W
Controls/Indicators
Status Indicators:
- On: RPS good
- Off: RPS failed
Physical Characteristics
Height:
37 mm
Width:
76 mm
Depth:
127 mm
Weight (Approximate):
830 g
Miscellaneous
Additional Information:
- AC Input Voltage Rating: 100VAC to 240VAC
- Leakage Current: 3.5mA max
- Line Regulation: +/-2% (measured output load from +/-10% rated load)
- Load Regulation: +/-5% (measured output load from 20% to 100% rated load)
- Output Ripple & Noise: 120mV
- Over Current Protection
- Over Voltage Protection: 13.5V to 17V
- AC Power Good Signal Required: +3.3V
- Shock & Vibration: 10-55Hz
- Insulation Resistance: Input to secondary >20Mohm 500VDC
- Input to secondary: 3000VAC for 1 minute, 10mA
- Input to P.E: 1500VAC for 1 minute, 10mA
Compatibility:
- DES-3326SR L3 stackable switch
- DES-3350SR L3 stackable switch
- DGS-3212SR L2/L3 stacking master
Certifications & Standards:
Safety Standards:
- UL 60950 3rd Edition
- TUV EN 60950
- CE Mark (LVD)
- CSA
- FCC Class B
- EN55022 (CISPR22) Class B
