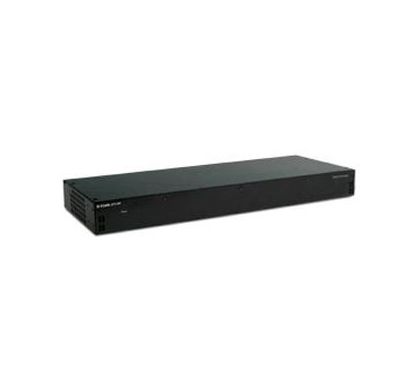

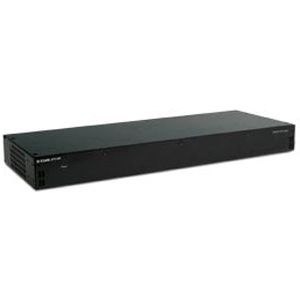

D-LINK DPS-600 Redundant Power Supply - 500 W
Description
This power supply is designed to conform to the wattage requirements of the Ethernet switch. The power supply provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of the Ethernet switch, which can result in the shutdown of that switching device, the PoE devices attached to its ports, or an entire network. Supporting 500 watts output power, this power supply can maximize power availability of the switching device.
Specifications
General Information
Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Model:
DPS-600
Product Name:
500W Redundant AC Power Supply
Product Type:
Redundant Power Supply
Technical Information
Protection Type:
- Over Voltage
- Short Circuit
- Overload
Reliability
MTBF:
100000 Hour
Power Description
Input Voltage:
- 264 V AC
Input Voltage Range:
- 90 V AC to 264 V AC
Output Voltage:
- 12 V
- -50 V
Input Current:
- 10 A @ 110V
- 5 A @ 220V
Output Power:
500 W
Physical Characteristics
Height:
44.5 mm
Width:
441 mm
Depth:
139 mm
Weight (Approximate):
3.50 kg
Miscellaneous
Compatibility:
D-Link DES-3828P Ethernet switches with Power over Ethernet (PoE)
Certifications & Standards:
Safety:
- UL
- CUL
- CE
- FCC Class B
