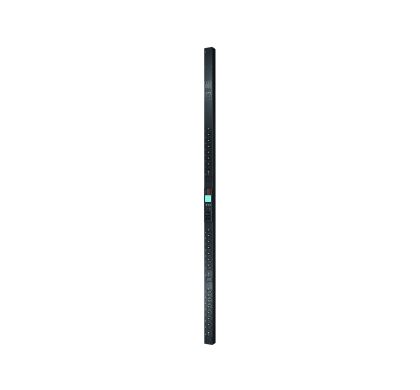

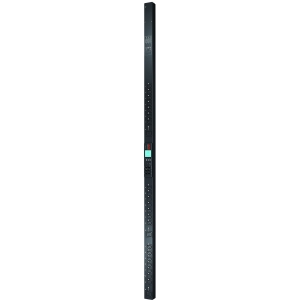

APC Switched Rack AP8959EU3 PDU

AP8959EU3

This product has been discontinued by the manufacturer

Please visit

APC PDUs

for alternative options.

Description

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Switched Rack
Product Model:
AP8959EU3
Product Name:
Switched Rack AP8959EU3 24-Outlets PDU
Product Type:
PDU

Technical Information

Output Receptacles:
  • 21 x IEC 60320 C13
  • 3 x IEC 60320 C19

Power Description

Input Voltage:
  • 200 V AC
  • 208 V AC
  • 230 V AC
Output Voltage:
  • 230 V AC

Management

Management:
  • Protocols:
    • Web
    • SNMP
    • Telnet
    • Command Line Interface

Physical Characteristics

Form Factor:
Rack-mountable
Number of Cord/Cable:
1
Height:
1791 mm
Width:
56 mm
Depth:
46 mm
Weight (Approximate):
5.73 kg

Miscellaneous

Package Contents:
  • Switched Rack AP8959EU3 24-Outlets PDU
  • Locking Input Power Cord
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Sample Locking IEC Power Cord
  • Serial Configuration Cable
Additional Information:
  • Input Receptacle: IEC 309 16A 2P+E
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • RoHS

Warranty

Standard Warranty:
2 Year
