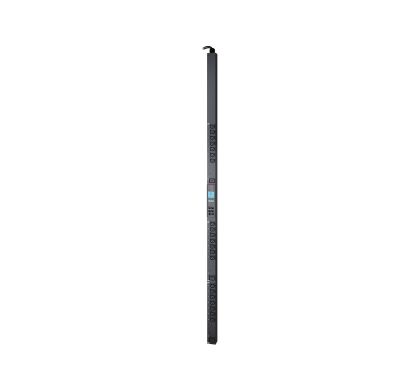

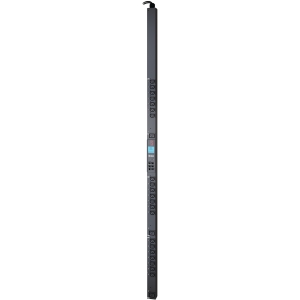

APC PDU

APC PDU
AP8681
Please Call
Please contact us for pricing

Description

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Name:
Metered-by-Outlet Rack 24-Outlets 11kW PDU
Product Type:
PDU

Technical Information

Input Receptacles:
  • IEC 309 20A 3P+N+E
  • IEC 309 16A 3P+N+PE
Output Receptacles:
  • 21 x IEC 60320 C13
  • 3 x IEC 60320 C19

Power Description

Input Voltage:
  • 400 V AC
Output Voltage:
  • 230 V AC
Power Rating:
11 kVA

Physical Characteristics

Weight (Approximate):
8.23 kg

Miscellaneous

Package Contents:
  • Metered-by-Outlet Rack 24-Outlets 11kW PDU
  • CAN Port Terminator
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Serial Configuration Cable
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • REACH

Warranty

Standard Warranty:
2 Year
