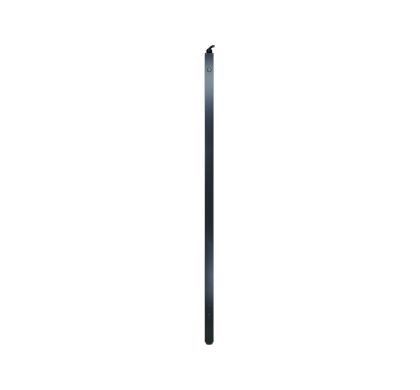

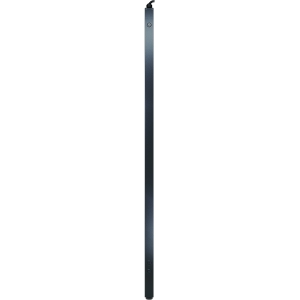

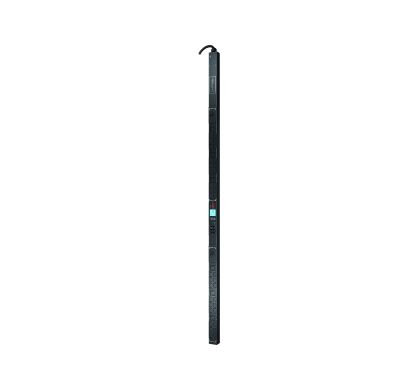

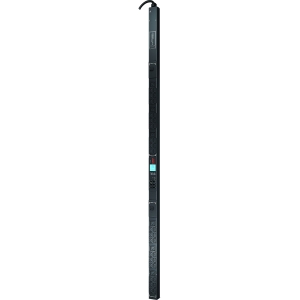

APC Metered Rack PDU

APC Metered Rack PDU
AP8853X678
Available
Please contact us for pricing

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare software suite.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Metered Rack
Product Name:
Metered Rack 42-Outlets PDU
Product Type:
PDU

Technical Information

Input Receptacles:
Clipsal 32A 56P332
Output Receptacles:
  • 6 x IEC 60320 C19
  • 36 x IEC 60320 C13
Protection Type:
  • Overload Protection

Power Description

Input Voltage:
  • 230 V AC
Output Voltage:
  • 230 V AC
Input Current:
  • 32 A
Circuit Breaker:
Yes

Management

Management:
    • Web
    • SNMP
    • Telnet

Interfaces/Ports

Serial Port:
Yes

Physical Characteristics

Form Factor:
  • Toolless-mount
  • Horizontal Rackmount
  • Vertical Rackmount
Rack Height:
0U
Number of Cord/Cable:
1
Cord Length:
3 m
Height:
1791 mm
Width:
56 mm
Depth:
44 mm
Weight (Approximate):
6.93 kg

Miscellaneous

Package Contents:
  • Metered Rack 42-Outlets PDU
  • Installation Guide
  • Rack Mounting Brackets
  • Serial Configuration Cable
Certifications & Standards:
VDE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
2 Year
