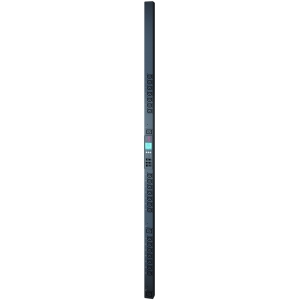

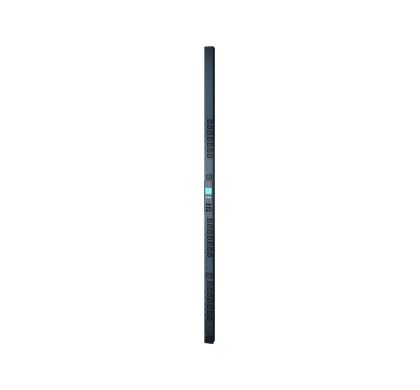

APC Metered Rack PDU

APC Metered Rack PDU
AP8659
Available
Please contact us for pricing

Description

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Metered Rack
Product Name:
Metered-by-Outlet Rack PDU
Product Type:
PDU

Technical Information

Input Receptacles:
IEC 60320 C20
Output Receptacles:
  • 21 x IEC 60320 C13
  • 3 x IEC 60320 C19

Power Description

Input Voltage:
  • 230 V AC
  • 208 V AC
  • 200 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 230 V AC

Management

Management:
  • Protocols:
    • SNMP
    • Telnet

Physical Characteristics

Form Factor:
Rack-mountable
Weight (Approximate):
6.09 kg

Miscellaneous

Package Contents:
  • Metered-by-Outlet Rack PDU
  • CAN Port Terminator
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Serial Configuration Cable
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • RoHS

Warranty

Standard Warranty:
2 Year
