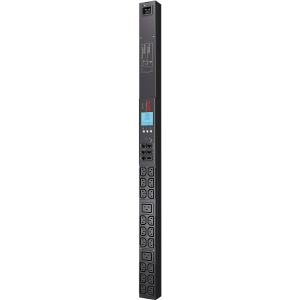

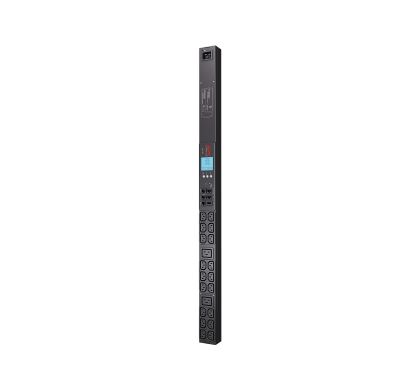

APC Metered Rack AP8858 PDU

APC Metered Rack AP8858 PDU
AP8858
Available
Please contact us for pricing

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Metered Rack
Product Model:
AP8858
Product Name:
Metered Rack AP8858 20-Outlets PDU
Product Type:
PDU

Technical Information

Input Receptacles:
IEC 60320 C20
Output Receptacles:
  • 2 x IEC 60320 C19
  • 18 x IEC 60320 C13

Power Description

Input Voltage:
  • 200 V AC
  • 208 V AC
  • 230 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 230 V AC

Management

Management:
  • Protocols:
    • SNMP
    • Telnet

Physical Characteristics

Form Factor:
Rack-mountable
Height:
902 mm
Width:
56 mm
Depth:
44 mm
Weight (Approximate):
2.93 kg

Miscellaneous

Package Contents:
  • Metered Rack AP8858 20-Outlets PDU
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Sample Locking IEC Power Cord
  • Serial Cable Configuration
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • RoHS

Warranty

Standard Warranty:
2 Year
