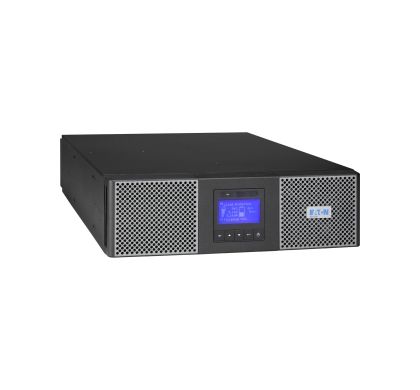

EATON Dual Conversion Online UPS - 0.05 Hour Full Load - 6 kVA
Description
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Specifications
General Information
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Brand Name:
Eaton
Product Series:
9PX
Product Name:
9PX UPS
Product Type:
Dual Conversion Online UPS
Technical Information
Plug/Connector Type:
- Hardwired
Receptacles:
- 2 x IEC 60320 C19
- 8 x IEC 60320 C13
- Hardwired
Power Description
Load Capacity:
6 kVA/5.40 kW
Input Voltage:
- 110 V AC
- 220 V AC
Input Voltage Range:
- 230 V AC Nominal
- 240 V AC Nominal
- 200 V AC Nominal
- 208 V AC Nominal
- 100 V AC to 276 V AC Derated
- 176 V AC to 276 V AC Non-derated
Output Voltage:
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
Frequency:
- 40 Hz to 70 Hz Input
Current:
- 90 A Short Circuit Current
Management
Network Management:
Optional
Emergency Power OFF:
Yes
Interfaces/Ports
Interfaces/Ports:
- 1 x RS-232 Serial
- 1 x USB
- 4 x DB-9
- 1 x DB-15
Modular Slots:
1 x Communications Slot
Battery Information
Backup/Run Time:
- 0.05 Hour 5.40 kW Full Load
- 0.13 Hour 2.70 kW Half Load
Physical Characteristics
Form Factor:
3U Tower/Rack Mountable
Height:
130.0 mm
Width:
440.0 mm
Depth:
685.0 mm
Weight (Approximate):
48.00 kg
Miscellaneous
Certifications & Standards:
- IEC/EN 62040-1
- UL 1778
- CSA 22.2
- IEC/EN 62040 -2
- FCC Class A
- IEC/EN 62040-3 (Performance)
- C-Tick
- CE
- CB report (TUV)
- UL
Warranty
Standard Warranty:
3 Year
