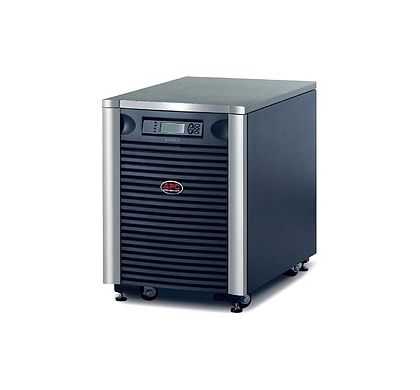

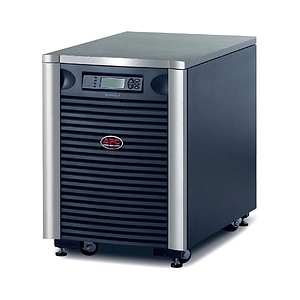

APC Symmetra SYA8K8I Dual Conversion Online UPS
Description
Engineered to deliver the highest level of business continuity possible, the Symmetra LX 8kVA Scalable to 8kVA N+1 Tower UPS uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Symmetra
Product Series:
LX
Product Model:
SYA8K8I
Product Name:
Symmetra LX 8kVA Scalable to 8kVA N+1 Tower UPS
Product Type:
Dual Conversion Online UPS
Technical Information
Plug/Connector Type:
- Hard Wire 3-wire
Receptacles:
- 1 x Hard Wire 3-wire
Power Description
Load Capacity (VA):
8 kVA
Input Voltage:
- 440 V AC
Load Capacity (Watt):
5.60 kW
Output Voltage:
- 220 V AC
- 230 V AC
- 240 V AC
Frequency:
- 47 to 63 Hz
- 45 to 65 Hz
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Overload Protection:
Yes
Bypass Switch:
- Manual
- Automatic
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
7.50 Minute
Backup/Run Time (Half Load):
20.20 Minute
Environmental Conditions
Maximum Operating Temperature:
40°C
Thermal Dissipation:
2762 BTU/h
Physical Characteristics
Colour:
- Silver
- Black
Height:
660 mm
Width:
480 mm
Depth:
730 mm
Shipping Weight (Approximate):
230 kg
Weight (Approximate):
202 kg
Miscellaneous
Package Contents:
- Symmetra LX 8kVA Scalable to 8kVA N+1 Tower UPS
- CD with software
- Documentation CD
- Installation Guide
- User Manual
- Web/SNMP Management Card
Additional Information:
- Automatic restart of loads after UPS shutdown
- InfraStruXure Manager Compatible
- Plug-and-Play external batteries
- Audible and visible alarms prioritized by severity
Certifications & Standards:
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- EN 55022 Class A
- EN 55022 Class B
- EN 55024
- EN 60950
- GOST
- IEC 60950
- VDE
Warranty
Standard Warranty:
2 Year
