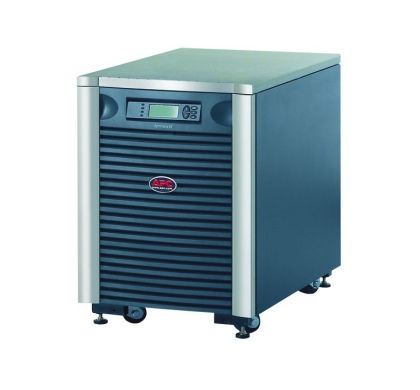

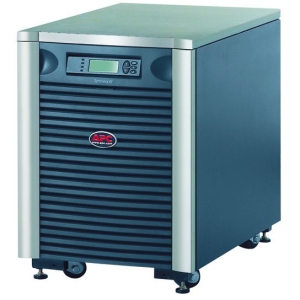

APC Symmetra SYA4K8I Dual Conversion Online UPS
Description
Engineered to deliver the highest level of business continuity possible, the Symmetra LX 4kVA Scalable to 8kVA uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Symmetra
Product Series:
LX
Product Model:
SYA4K8I
Product Name:
Symmetra LX 4kVA Scalable to 8kVA UPS
Product Type:
Dual Conversion Online UPS
Technical Information
Plug/Connector Type:
- Hard Wire 3-wire
Receptacles:
- 1 x Hard Wire 3-wire
Power Description
Load Capacity (VA):
8 kVA
Input Voltage:
- 220 V AC
Load Capacity (Watt):
5.60 kW
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Overload Protection:
Yes
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Environmental Conditions
Thermal Dissipation:
2762 BTU/h
Physical Characteristics
Height:
660.4 mm
Width:
482.6 mm
Depth:
736.6 mm
Shipping Weight (Approximate):
178.72 kg
Weight (Approximate):
157.40 kg
Miscellaneous
Package Contents:
- Symmetra LX 4kVA Scalable to 8kVA UPS
- CD with software
- Documentation CD
- Installation Guide
- User Manual
- Web/SNMP Management Card
Additional Information:
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: up to 5:1
- Battery Slots Empty: 1
- Units per Pallet: 1
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery modules connected in parallel
- Cold-start capable
- Configurable for N+1 internal redundancy
- Disconnected battery notification
- Field-replaceable power distribution panel
- Frequency and voltage regulation
- Generator compatible
- Hot-swappable intelligence modules
- Hot-swappable power modules
- InfraStruXure Manager compatible
- Input power factor correction
- Manageable external batteries
- Plug-and-Play external batteries
- Power conditioning
- Power Modules connected in parallel
- Predictive failure notification
- Programmable frequency
- Rack/Tower convertible
- Redundant Intelligence Modules
- Removable input/output wiring tray
- User-replaceable intelligence modules
- User-replaceable power modules
Certifications & Standards:
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- EN 55022 Class A
- EN 55022 Class B
- EN 55024
- EN 60950
- GOST
- IEC 60950
- VDE
Warranty
Standard Warranty:
2 Year
