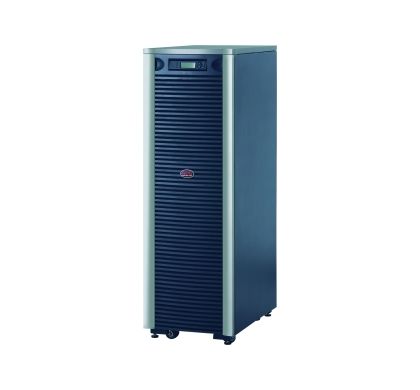

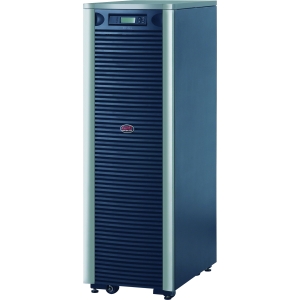

APC Symmetra SYA12K16IXR Dual Conversion Online UPS
Description
The Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. The on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Symmetra
Product Series:
LX
Product Model:
SYA12K16IXR
Product Name:
Symmetra LX 12kVA Scalable to 16kVA Tower UPS
Product Type:
Dual Conversion Online UPS
Technical Information
Receptacles:
- 1 x Hard Wire 3-wire
Power Description
Load Capacity (VA):
12 kVA
Input Voltage:
- 220 V AC
Load Capacity (Watt):
8.40 kW
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Spill-proof/Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Environmental Conditions
Thermal Dissipation:
3707 BTU/h
Physical Characteristics
Form Factor:
Tower
Height:
1524 mm
Width:
482.6 mm
Depth:
736.6 mm
Shipping Weight (Approximate):
519.36 kg
Weight (Approximate):
487.61 kg
Miscellaneous
Package Contents:
- Symmetra LX 12kVA Scalable to 16kVA Tower UPS
- CD with software
- Documentation CD
- User Manual
- Web/SNMP Management Card
Additional Information:
- Automatic restart of loads after UPS shutdown
- Cold-start capable
- Configurable for N+1 internal redundancy
- Field-replaceable power distribution panel
- Frequency and voltage regulation
- Generator Compatible
- InfraStruXure Manager Compatible
- Input Power Factor Correction
- Manageable external batteries
- Plug-and-Play external batteries
- Redundant Intelligence Modules
- Removable input/output wiring tray
- Shippable with modules installed
- 220V
- 240V
- 380V
- 415V
Certifications & Standards:
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- EN 55022 Class A
- EN 55024
- EN 60950
- GOST
- IEC 60950
- VDE
Warranty
Standard Warranty:
2 Year
