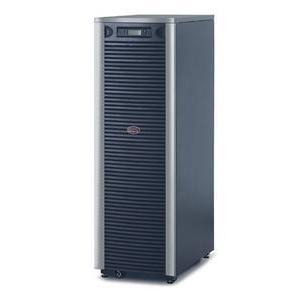

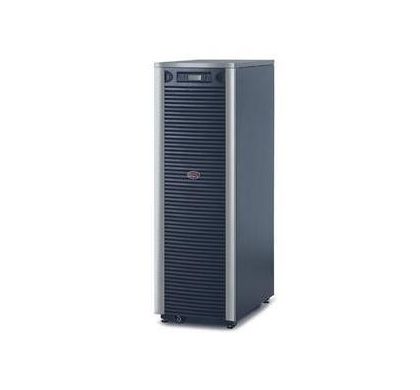

APC Symmetra SYA8K16I Dual Conversion Online UPS
Description
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Symmetra
Product Series:
LX
Product Model:
SYA8K16I
Product Name:
Symmetra LX 8kVA Scalable to 16kVA
Product Type:
Dual Conversion Online UPS
Technical Information
Receptacles:
- 1 x Hard Wire 3-wire
Power Description
Load Capacity (VA):
16 kVA
Input Voltage:
- 440 V AC
Load Capacity (Watt):
11.20 kW
Waveform Type:
Sine Wave
Management
Network Management:
SNMP Manageable
Overload Protection:
Yes
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes
Interfaces/Ports
Modular Slots:
1 x SmartSlot
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Environmental Conditions
Thermal Dissipation:
3707 BTU/h
Physical Characteristics
Form Factor:
Tower
Height:
939.8 mm
Width:
482.6 mm
Depth:
736.6 mm
Shipping Weight (Approximate):
236.32 kg
Weight (Approximate):
219.09 kg
Miscellaneous
Package Contents:
- Symmetra LX 8kVA Scalable to 16kVA
- CD with software
- Documentation CD
- Installation Guide
- User Manual
- Web/SNMP Management Card
Additional Information:
- Audible and visible alarms prioritized by severity
- Output Voltage Distortion: less than 5% at full load
- Units per Pallet: 1
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Cold-start capable
- Configurable for N+1 internal redundancy
- Generator Compatible
- InfraStruXure Manager Compatible
- Input Power Factor Correction
- Manageable external batteries
- Removable input/output wiring tray
- Programmable Frequency
- Input Power Factor Correction
- Power conditioning
- Frequency and voltage regulation
- Safety-agency approved
Certifications & Standards:
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- EN 55022 Class A
- EN 55024
- EN 60950
- GOST
- IEC 60950
- VDE
Warranty
Standard Warranty:
2 Year
