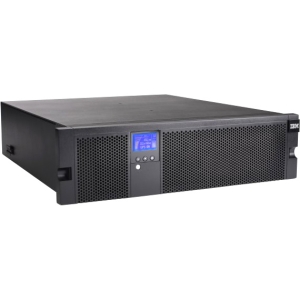

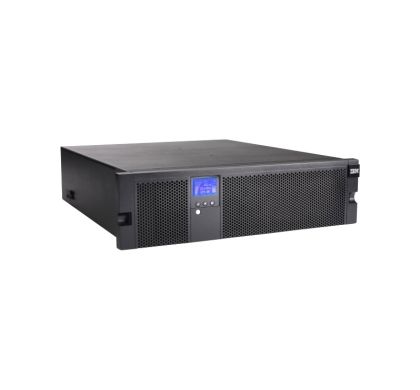

IBM 5395-3KX Line-interactive UPS - 3000 VA/2700 W - 3U Rack-mountable

IBM 5395-3KX Line-interactive UPS - 3000 VA/2700 W - 3U Rack-mountable
53953KX

This product has been discontinued by the manufacturer

Please visit

IBM General Purpose UPS

for alternative options.

Description

The IBM 3000VA LCD 3U Rack uninterruptible power supply (UPS) delivers 2700 watts of power in only 3U of rack space, providing smart energy management and the highest level of power protection that today's IT infrastructures require. With an efficiency rating of 95% or greater, the UPS helps reduce energy usage and cooling costs, improves energy management, and optimizes workload performance and availability for IBM System x and BladeCenter server applications. This high-density UPS packs more real power (watts) into a space-saving 3U of rack space to protect more equipment and leaves room for expanding IT systems.

Specifications

General Information

Manufacturer:
IBM Corporation
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
IBM
Product Model:
5395-3KX
Product Name:
5395-3KX 3000VA Rack-mountable UPS
Product Type:
Line-interactive UPS

Technical Information

Plug/Connector Type:
  • IEC 60320 C20
Receptacles:
  • 2 x IEC 60320 C19
  • 8 x IEC 60320 C13
Emergency Power OFF:
Yes

Power Description

Load Capacity (VA):
3000 VA
Load Capacity (Watt):
2700 W
Input Voltage:
  • 220 V AC
Output Voltage:
  • 253 V AC

Management

Network Management:
SNMP Manageable

Interfaces/Ports

Serial Port:
Yes
USB:
Yes

Battery Information

Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Valve-regulated Lead Acid (VRLA)
Backup/Run Time (Full Load):
7 Minute
Backup/Run Time (Half Load):
17 Minute
Maximum Battery Recharge Time:
4 Hour
Hot Swappable:
Yes

Physical Characteristics

Height:
127 mm
Width:
436.9 mm
Depth:
528.3 mm
Rack Height:
3U
Form Factor:
Rack-mountable
Weight (Approximate):
40.87 kg

Miscellaneous

Package Contents:
  • 5395-3KX 300VA Rack-mountable UPS
  • Front Bezel
  • Rack Mount Kit with Rails and Hardware
  • Rack Installation Instructions
  • Serial Cable (3.7 m, 12 ft)
  • USB Cable
  • 4-post Rail Kit
  • Remote Emergency Power-off (REPO) Connector
  • Warranty Flyer
  • Important Notices Manual
  • Documentation CD
  • IBM UPS Manager Power Management Software CD
Software Included:
IBM UPS Manager Power Management Software

Warranty

Standard Warranty:
3 Year
