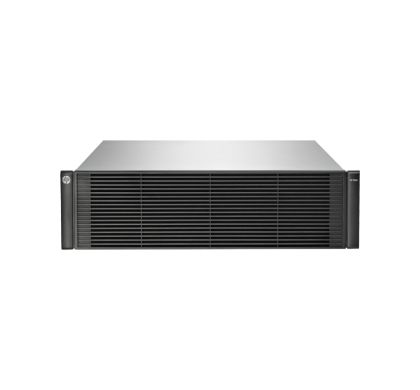

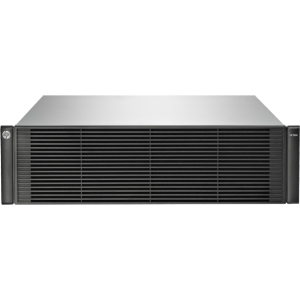

HP R7000 Dual Conversion Online UPS - 6300 VA/6300 W - 4U Rack-mountable

AF463A

This product has been discontinued by the manufacturer

Please visit

HP General Purpose UPS

for alternative options.

Description

Does your power protection strategy need to meet the same high standards as your IT hardware? HP Rack-mountable uninterruptible Power Systems focus on the three critical areas for uninterruptible power in dense data center environments: power density, superior battery management and serviceability. Combining unity rating with more true wattage in smaller form factors, the HP Rack-mountable UPS is highly dense. The On-line On Demand hybrid technology optimizes efficiency and heat output during general operation. All HP Rack-mountable UPSs ship with the free HP Power Protector Software that incorporates Enhanced Battery Management, an exclusive patented technology that doubles battery service life, which lowers your costs. Hot-swappable batteries and intelligent automatic bypass for continuous power improve serviceability.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Model:
R7000
Product Name:
R7000 6300VA Rack-mountable UPS
Product Type:
Dual Conversion Online UPS

Technical Information

Receptacles:
  • 6 x IEC 320 EN 60320 C19
Emergency Power OFF:
Yes

Power Description

Load Capacity (VA):
6300 VA
Load Capacity (Watt):
6300 W
Input Voltage:
  • 220 V AC

Management

Network Management:
SNMP Manageable

Interfaces/Ports

Serial Port:
Yes
USB:
Yes

Battery Information

Number of Batteries:
18
Battery Characteristics:
Maintenance-free, Sealed
Battery Chemistry:
Valve-regulated Lead Acid (VRLA)
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
15 Minute
Maximum Battery Recharge Time:
48 Hour
Hot Swappable:
Yes

Physical Characteristics

Height:
171 mm
Width:
437 mm
Depth:
734 mm
Rack Height:
4U
Form Factor:
Rack-mountable
Weight (Approximate):
75 kg

Miscellaneous

Package Contents:
  • R7000 6300VA Rack-mountable UPS
  • Network Module for HP UPS
  • Documentation CD Power Products
  • Rack Mounting Rails
  • Mounting Brackets
  • Retaining Clips Cords
  • Communications Cable
  • 2 x Extension Bar Power Distribution Unit (7 x C13 taken each)
Additional Information:
    • Power input connector : IEC 60309 332P6
    • Electrical output connection : 2 x IEC 60309 332P6
Certifications & Standards:
  • UL
  • cUL
  • GS
  • CE
  • GOST
  • UL1778
  • UL60950-1
  • CSA22.2 No.107.3
  • No.60-1950
  • EN50091-1-1
  • EN60950-1 IEC62040-1-1
  • FCC
  • VCCI
  • ICES
  • CISPR
  • BSMI
  • C-Tick
  • CISPR
  • FCC CFR 47
  • Part 15 Class A
  • EN50091-2
  • IEC 801-2
  • IEC 801-3
  • IEC 801-4
  • IEC 801-5
  • REPO Port Meets NEC code 645-11 intent and UL requirements
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • WEEE

Warranty

Standard Warranty:
3 Year Limited
