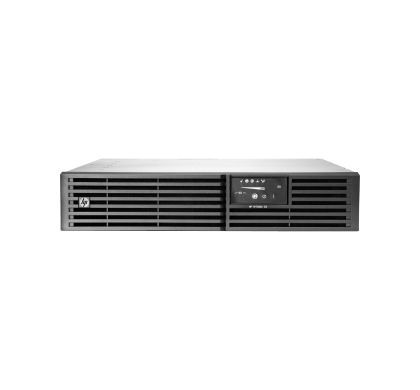

HP R/T3000 G2 Dual Conversion Online UPS - 3.30 kVA/3 kW - 2UTower/Rack Mountable - 0.07 Hour Full Load - 2 x IEC 60320 C19, 6 x IEC 60320 C13

AF468A

This product has been discontinued by the manufacturer

Please visit

HP General Purpose UPS

for alternative options.

Description

The industry leading HP R/T3000 G2 Uninterruptible Power System (UPS) packs up to 3000 watts into a space saving 2U design. Proven Digital Signal Processor (DSP) double conversion system provides clean, reliable power protection in an energy efficient transformer-less design while reducing generated heat. The HP R/T3000 G2 UPS includes a Rack to Tower Conversion Kit for non rack applications outside the data center. In this configuration the HP R/T3000 G2 can provide powerful protection to multiple tower servers as well as tower Blade Enclosures such as the HP BladeSystem c3000 Enclosure. In addition, Extended Runtime Modules (ERM) are available to increase battery run time during a power outage. ERMs can be used in both rack mount and tower configuration with the HP R/T3000 G2UPS. Robust and Flexible UPS management is provided by HP's New Power Protector UPS Management software.

Specifications

General Information

Manufacturer:
Hewlett-Packard
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Model:
R/T3000 G2
Product Name:
R/T3000 G2 3300 VA Tower/Rack Mountable UPS
Product Type:
Dual Conversion Online UPS

Technical Information

Plug/Connector Type:
  • IEC 60320 C20
Receptacles:
  • 2 x IEC 60320 C19
  • 6 x IEC 60320 C13
Bypass Switch:
  • Automatic
  • Manual
Emergency Power OFF:
Yes

Power Description

Input Voltage:
  • 220 V AC

Management

Network Management:
SNMP Manageable Optional

Physical Characteristics

Height:
89.0 mm
Width:
445.0 mm
Depth:
635.0 mm
Form Factor:
2U Tower/Rack Mountable
Weight (Approximate):
37.19 kg

Miscellaneous

Package Contents:
  • R/T3000 G2 3300 VA Tower/Rack Mountable UPS
  • 1 x Documentation CD
  • Mounting Hardware
  • Conversion Kit
  • Communication Cables
  • 1 x Power Strip for PDU
Certifications & Standards:
  • UL
  • GS
  • CE
  • GOST
  • UL1778
  • UL60950-1
  • CSA22.2 No.107.3-05
  • EN60950-1 IEC62040-1-1
  • NEC code 645-10
  • NEC code 645-11
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • WEEE

Warranty

Standard Warranty:
3 Year
