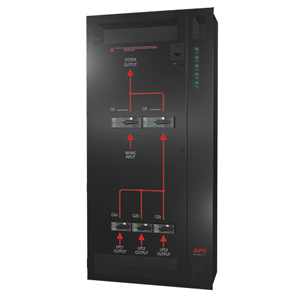

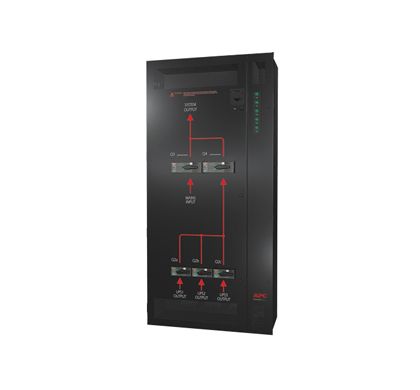

APC SBPAR10K20H-WP Bypass Panel

APC SBPAR10K20H-WP Bypass Panel
SBPAR10K20H-WP
Please Call
Please contact us for pricing

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
SBPAR10K20H-WP
Product Name:
SBPAR10K20H-WP Parallel Maintenance Bypass Panel
Product Type:
Bypass Panel

Technical Information

Receptacles:
  • 1 x Hard Wire 5-wire 3PH + N + G

Power Description

Load Capacity:
20 kVA
Input Voltage Range:
  • 400 V AC3-phase Nominal
Output Voltage:
  • 400 V AC 3-phase Nominal
Current:
  • 182.40 A Total Current Draw Per Phase
  • 182.40 A Input Current Per Phase
Frequency:
  • 50 Hz

Physical Characteristics

Form Factor:
Wall Mountable
Height:
1174 mm
Width:
560 mm
Depth:
216 mm
Weight (Approximate):
48 kg

Miscellaneous

Package Contents:
  • SBPAR10K20H-WP Parallel Maintenance Bypass Panel
  • Installation Guide
  • User Manual
Compatibility:
APC Smart-UPS VT
Certifications & Standards:
  • EN 50091-2
  • EN/IEC 62040-3
  • EN/IEC 62040-1-1
  • VFI-SS-111

Warranty

Standard Warranty:
1 Year
