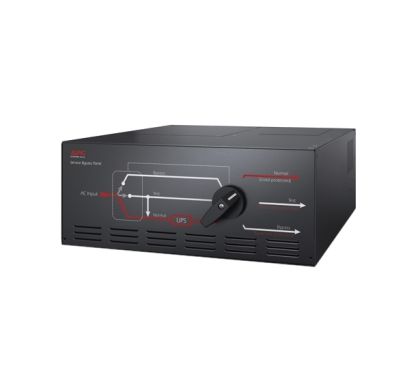

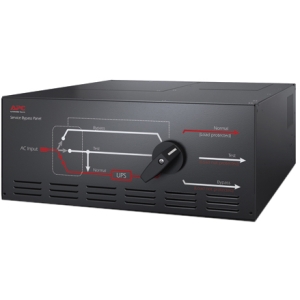

APC Bypass Panel
Description
Smart-UPS accessories include various backplate PDU options, external standard and switched PDU options, matching battery cabinets for extending run time(Smart-UPS XL only), management devices, service products and mounting options. These accessories can customize your solution to increase availability, adaptability, serviceability, manageability and performance.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Name:
Service Bypass Panel
Product Type:
Bypass Panel
Technical Information
Plug/Connector Type:
- Hard Wire 5-wire 3PH + N + G
- Hard Wire 3-wire 1PH+N+G
Receptacles:
- 8 x IEC 60320 C19
Protection Type:
- Overload
Power Description
Load Capacity:
20 kVA
Input Voltage:
- 220 V AC
Input Voltage Range:
- 400 V AC3-phase Nominal
- 380 V AC3-phase Nominal
- 240 V ACNominal
- 230 V ACNominal
Output Voltage:
- 230 V AC Nominal
Current:
- 125 A Line Current Per Phase
- 125 A Input Current Per Phase
- 125 A Total Current Draw Per Phase
Frequency:
- 50 Hz
Physical Characteristics
Colour:
- Black
Form Factor:
Rack-mountable
Height:
178 mm
Width:
432 mm
Depth:
572 mm
Weight (Approximate):
18.78 kg
Miscellaneous
Package Contents:
- Smart-UPS Bypass Panel
- Installation Guide
- Rack Mounting Brackets
- User Manual
Compatibility:
APC Smart-UPS
Certifications & Standards:
- CSA
- EN 60950
- GOST
- IEC 60950
- UL 1778
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- REACH
Warranty
Standard Warranty:
2 Year
