STARTECH ADJDINKIT Rack Conversion Kit for Rack
Description

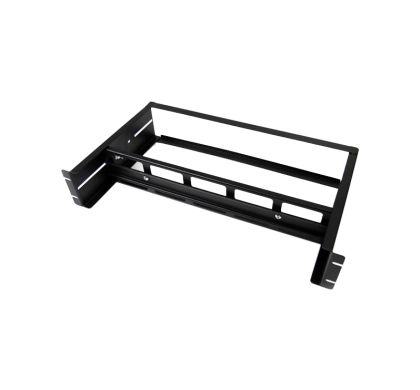

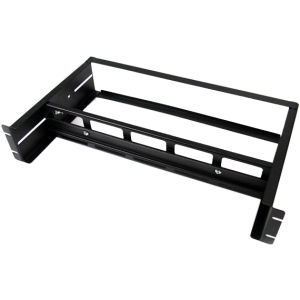

Easily mount any DIN Rail equipment in a standard 19" rack. The ADJDINKIT Adjustable Rack Mount DIN Rail Kit with Top Hat/Mini/G Rails makes mounting your DIN-rail equipment in a 19-inch server rack/cabinet or wall plate simple, without wasting space due to special bracket requirements for each piece of equipment.
This 19-inch DIN Rail Mounting Kit includes the three most commonly used DIN rail systems: Top-Hat, Miniature Top-Hat, and G-Type.
Backed by a StarTech.com Lifetime Warranty.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
ADJDINKIT
Product Name:
Rackmount DIN Rail Kit with Top Hat/Mini/G Rails
Packaged Quantity:
1
Product Type:
Rack Conversion Kit
Product Information
Device Supported:
- Rack
Physical Characteristics
Colour:
- Black
Material:
- Steel
Height:
8.9 cm
Width:
48.3 cm
Depth:
35.8 cm
Weight (Approximate):
1.72 kg
Miscellaneous
Package Contents:
- 1 x Rack Mount DIN Rail Frame
- 1 x Adjustable DIN Rail Mount with Top Hat DIN Rail
- 1 x Mini Top Hat DIN Rail
- 1 x G-type DIN Rail
- 2 x Carriage Bolt
- 2 x Wing Nut
- 4 x Plastic Washer
- 2 x M5 Screw
- 2 x M5 Nut
- 1 x Installation Guide
Additional Information:
- Maximum Mounting Depth: 222.25 mm
Compatibility:
Standard 19" Rack
Certifications & Standards:
- EIA-310D
- UL
- CE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
Warranty
Standard Warranty:
2 Year Lifetime
