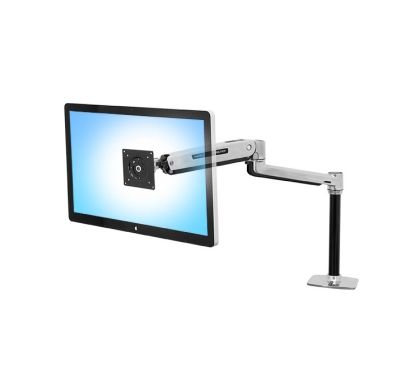

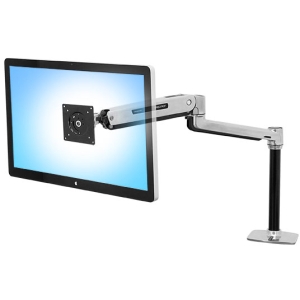

ERGOTRON Mounting Arm for Flat Panel Display
Description
This versatile arm can be used in a variety of applications: attach a smaller monitor for use within a sit-stand workstation or position a large display up to 25 lbs (11.3 kg) wherever you want it.
The LX provides unparalleled range of motion, being able to accommodate a user's sitting or standing posture-features 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side adjustment.
Specifications
General Information
Manufacturer:
Ergotron, Inc
Manufacturer Website Address:
http://www.ergotron.com
Brand Name:
Ergotron
Product Series:
LX
Product Name:
LX Sit-Stand Desk Mount LCD Arm
Product Type:
Mounting Arm
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
11.34 kg
Maximum Screen Size Supported:
- 106.7 cm (42")
Features:
- Tilt
- Pan
- Rotate
- Foldable
- Adjustable Height
- Cable Management
Physical Characteristics
Colour:
- Polished Aluminum
VESA Mount Standard:
- 75 x 75
- 100 x 100
- 200 x 100
- 200 x 200
Weight (Approximate):
8.85 kg
Miscellaneous
Package Contents:
- LX Sit-Stand Desk Mount LCD Arm
- Extension
- Desk Clamp Base
- Grommet-Mount Base
- 42 cm Pole
- VESA Brackets
Additional Information:
- Extends LCD up to 33" (84 cm)
Folds to within 4.5" (12 cm) of back of desk in storage position - 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
- Secure installation, locking connections between arm, extension and baseDesk clamp attaches to edge up to 2.5" (65 mm) thick
- Grommet mount attaches through hole 0.5" to 2.5" (7-65 mm) wide and up to 2.5" (65 mm) thick
Compatibility:
LCD Monitor/TV
Certifications & Standards:
MIS-D/E/F
Warranty
Standard Warranty:
5 Year
