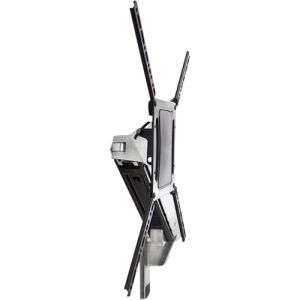

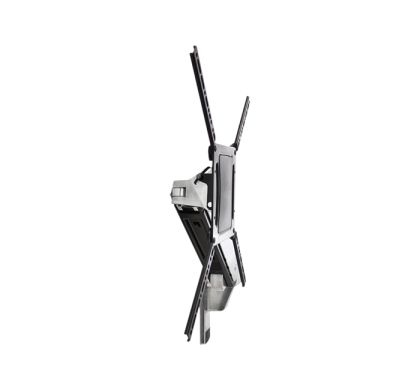

ERGOTRON Mounting Arm for Flat Panel Display
Description
Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 20.75-inch (53 cm) motion adjustment to either side.
Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
Specifications
General Information
Manufacturer:
Ergotron, Inc
Manufacturer Website Address:
http://www.ergotron.com
Brand Name:
Ergotron
Product Name:
Interactive Arm, VHD
Product Type:
Mounting Arm
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
31.75 kg
Minimum Screen Size Supported:
76.2 cm (30")
Maximum Screen Size Supported:
- 152.4 cm (60")
Maximum Adjustable Height:
508 mm
Features:
- Leveling System
- Cable Management
- Adjustable Height
- Adjustable Width
- Heavy Duty
- Rotate
- Pan
- Tilt
- Pivot
Physical Characteristics
Colour:
- Black
- Polished Aluminum
VESA Mount Compatible:
Yes
VESA Mount Standard:
- 200 x 400
- 200 x 100
Material:
- Aluminium
Height:
355.6 mm
Width:
726.4 mm
Miscellaneous
Additional Information:
- Patented Constant Force technology enables light-touch adjustments
- Gravity pivot enables tilting capabilities without the need of knobs or levers
- Tilts forward 15°, tilts back 5°
- Rotation of +/-5° provides leveling adjustment of screen in any position
- Level the screen at any position with +/- 5º of post-installation rotation
- Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
- Extends 28" (71 cm) from wall when in use and can be fully retracted to 6.5" (17 cm) when not in use
Compatibility:
LCD Screen
