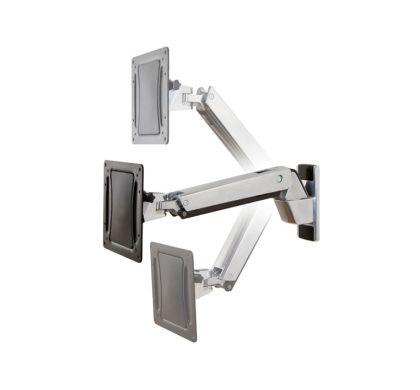

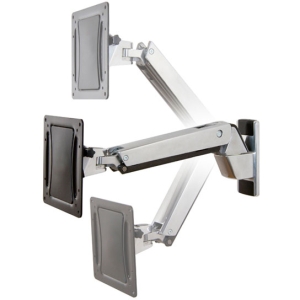

ERGOTRON Mounting Arm for Flat Panel Display
Description
Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.
Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
Specifications
General Information
Manufacturer:
Ergotron, Inc
Manufacturer Website Address:
http://www.ergotron.com
Brand Name:
Ergotron
Product Name:
HD Interactive Arm
Product Type:
Mounting Arm
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
18.14 kg
Minimum Screen Size Supported:
76.2 cm (30")
Maximum Screen Size Supported:
- 139.7 cm (55")
Features:
- Cable Management
- Swivel
- Pan
- Tilt
Physical Characteristics
Colour:
- Black
- Polished Aluminum
VESA Mount Compatible:
Yes
VESA Mount Standard:
- 200 x 400
- 200 x 100
Miscellaneous
Additional Information:
- Lift: 20"
- Tilt: 25°
- Pan: 180°
- Rotation: 10°
- Patented Constant Force technology enables light-touch adjustments
- Extends 24" from wall when in use and can be fully retracted to 5.5" when not in use
- Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
- Gravity pivot enables tilting capabilities without the need of knobs or levers
- Improves ergonomic viewing for TVs/displays mounted high on the wall
- Tilt and pan for maximum viewing flexibility
- Level the screen at any position with +/- 5º of post-installation rotation
- Cable management clips on the underside of the arm route and hide wires
- Easy to use: simple installation and effortless operation
Compatibility:
LCD Screen
