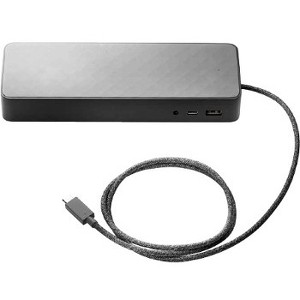

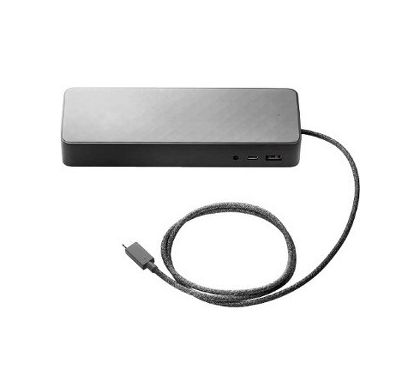

HP HSA-B005DS USB Type C Docking Station for Notebook/Tablet PC/Desktop PC - 90 W

2UF95AA

This product has been discontinued by the manufacturer

Please visit

HP Docking Stations

for alternative options.

Description

Universal enterprise docking for your fixed or shared workspaces

Transform your HP notebook or tablet into a complete desktop experience with the HP USB-C Universal Dock with 4.5mm Adapter, which delivers USB-C™ or 4.5mm barrel charging1 and connections for your network, dual 4K displays, and accessories with one cable connection.

Expansion for all the ways you work
Connect to your accessories with one USB 3.0 charging port, three USB 2.0 ports, and one USB-C™ charging/data port. Drive Dual 4K displays or one 5K display from two DisplayPort™ ports. Use RJ-45 for Gigabit Ethernet and network manageability.

Enterprise-class network manageability
Support network manageability of your device and the dock with PXE boot support, Wake-on LAN, MAC Address Pass-Through, and LAN/WLAN switching.

Universal docking
Designed for compatibility with industry standard USB-C™5, dock any notebook or tablet using the USB-C™ cable or the included HP 4.5mm and USB Dock Adapter.

Avoid downtime with pass through power
Power and charge your notebook or tablet through the powered USB-C™ port or the included HP 4.5mm and USB Dock Adapter for a tidy workspace with no additional power adapter required.

Click or call support
Get the reassurance of a one-year limited warranty.

Specifications

General Information

Manufacturer:
HP Inc.
Manufacturer Website Address:
http://www.hp.com/au/
Brand Name:
HP
Product Model:
HSA-B005DS
Product Name:
USB-C Universal Dock w/4.5mm Adapter
Product Type:
Docking Station

Technical Information

Connectivity Technology:
  • Wired
Device Supported:
  • Notebook/Tablet PC/Desktop PC

Interfaces/Ports

Host Interface:
  • USB Type C
Audio Line Out:
Yes
Total Number of USB Ports:
5
Number of USB 2.0 Ports:
3
Number of USB 3.0 Ports:
1
Network (RJ-45):
Yes
DisplayPort:
Yes

Physical Characteristics

Height:
27.9 mm
Width:
199.9 mm
Depth:
70.1 mm
Weight (Approximate):
349.3 g
