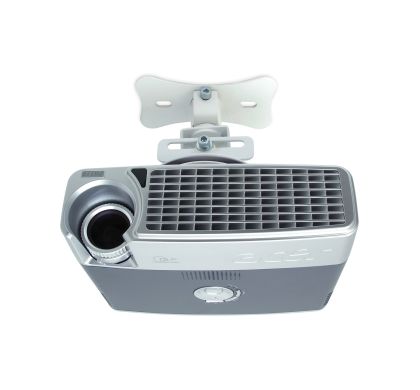

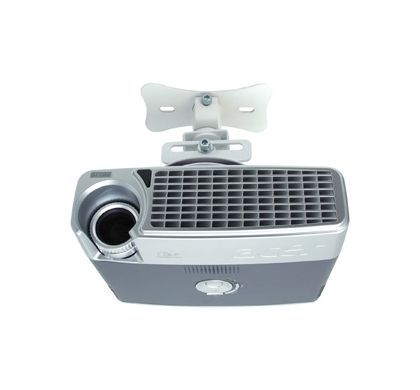

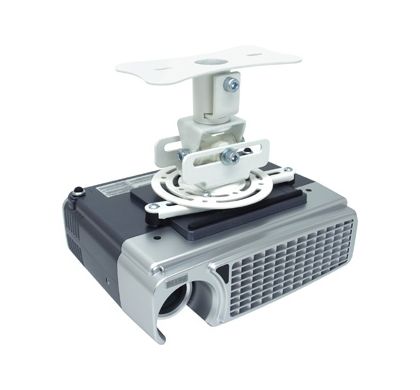

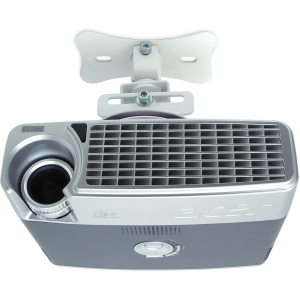

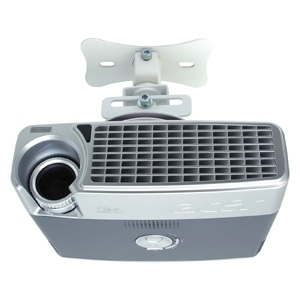

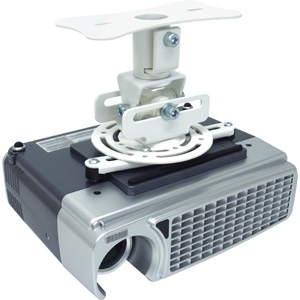

ATDEC Telehook TH-WH-PJ-FM Ceiling Mount for Projector
Description
This flush ceiling projector mount is designed for home and commercial use. It provides pitch, roll, yaw and positional adjustment. It features universal mounting hole compatibility for PJs up to 33 lbs. (15kg) and a Quick Attachment system for easy installation / maintenance. It comes with an easy to follow installation guide, projector and ceiling mounting hardware.
Specifications
General Information
Manufacturer:
Atdec Pty Ltd
Manufacturer Website Address:
http://www.atdec.com
Brand Name:
Telehook
Product Model:
TH-WH-PJ-FM
Product Name:
TH-WH-PJ-FM Universal Projector Ceiling Flush Mount
Product Type:
Ceiling Mount
Product Information
Device Supported:
- Projector
Maximum Load Capacity:
14.97 kg
Features:
- Swivel
Physical Characteristics
Colour:
- White
Material:
- Steel
Miscellaneous
Package Contents:
- 1 x Flush Mount Assembly
- 2 x 50mm Extension Brackets
- 2 x 75mm Extension Brackets
- 2 x 100mm Extension Brackets
- 2 x 150mm Extension Brackets
- 8 x Square Nut
- 4 x M5 x 10 mm Socket Button Cap Screw
- 1 x 6mm Allen Key
- 2 x Nylon Anchor Plug
- 2 x 20mm Washer
- 4 x 10mm Washer
- 4 x 8mm Washer
- 4 x M2.5 x 15 Crossed Recessed Screws
- 4 x M3 x 15 Crossed Recessed Screws
- 4 x M3 x 20 Crossed Recessed Screws
- 4 x M4 x 15 Crossed Recessed Screws
- 4 x M4 x 20 Crossed Recessed Screws
- 4 x M4 x 25 Crossed Recessed Screws
- 4 x M5 x 15 Crossed Recessed Screws
- 4 x M5 x 20 Crossed Recessed Screws
- 4 x M5 x 25 Crossed Recessed Screws
- 4 x M6 x 15 Crossed Recessed Screws
- 4 x M6 x 20 Crossed Recessed Screws
- 4 x M6 x 25 Crossed Recessed Screws
- 4 x Bottom Spacer
- 1 x 3mm Allen Key
- 2 x 14 Gauge Coach Screw
- 4 x Large Spacer
- 4 x Medium Spacer
- 4 x Small Spacer
Additional Information:
- Quick & easy installation
- Fast disconnect mechanism for easy maintenance
- Distance from ceiling 5"(127mm)
- Mounts projector 127mm (5")from ceiling
- Maximum: Roll adjustment: +/- 20°
- Maximum: Pitch adjustment: +/- 40°
- Quick release mechanism for easy installation or removal for maintenance purposes
- 360 Degrees rotation
Compatibility:
Projector
Assembly Required:
- Yes
Warranty
Standard Warranty:
10 Year
