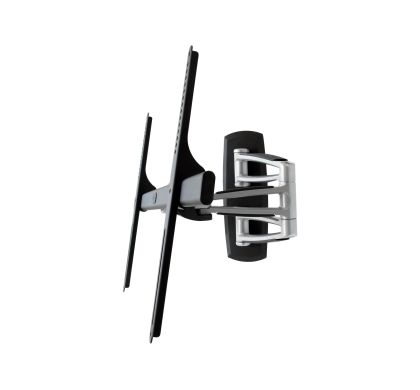

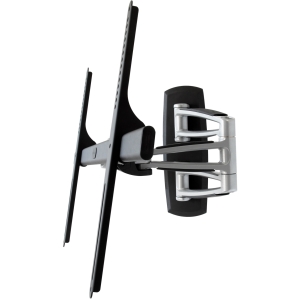

ATDEC Telehook TH-3270-UFM Mounting Arm for Flat Panel Display
Description
This adjustable wall mount is designed for high weight LED, LCD & Plasma displays up to 143 lbs. (65kg). This mount is suitable for displays from 42"-70". It features an Articulated Arm with Smooth Glide technology for easy position adjustment, a removable head for easy display mounting and load-assisted tilt adjustment. It has universal mounting hole support and ships with an easy installation guide and mounting hardware for timber stud and masonry wall attachment.
Specifications
General Information
Manufacturer:
Atdec Pty Ltd
Manufacturer Website Address:
http://www.atdec.com
Brand Name:
Telehook
Product Model:
TH-3270-UFM
Product Name:
3270 Wall/Full Motion
Product Type:
Mounting Arm
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
64.86 kg
Minimum Screen Size Supported:
106.7 cm (42")
Maximum Screen Size Supported:
- 177.8 cm (70")
Maximum Adjustable Depth:
635 mm
Features:
- Articulating
Physical Characteristics
Colour:
- Black
- Silver
VESA Mount Compatible:
Yes
VESA Mount Standard:
- 200 x 300
- 800 x 400
- 800 x 200
- 600 x 400
- 400 x 400
- 400 x 300
- 300 x 300
- 200 x 200
- 200 x 100
- 100 x 100
Material:
- Steel
Depth:
154.9 mm
Miscellaneous
Additional Information:
- Spring supported tilt adjustment -5°/+20°
- TV horizontal adjustment of -/+5°
- Maximum reach from wall 635mm
- Minimum distance from wall 174mm
- Smooth Glide technology for effortless articulation or movement
- Offers a full range of movement via three pivot points
- Designed for simple installation
- Quick release mechanism for fast TV attachment or removal
- Advanced internal cable management
- Theft resistant design
Compatibility:
- LED
- LCD
- Plasma
Assembly Required:
- Yes
