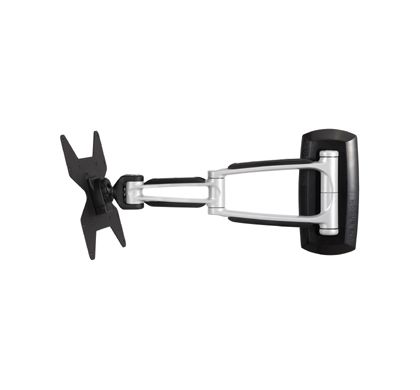

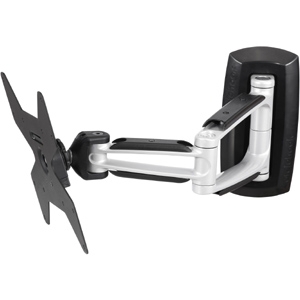

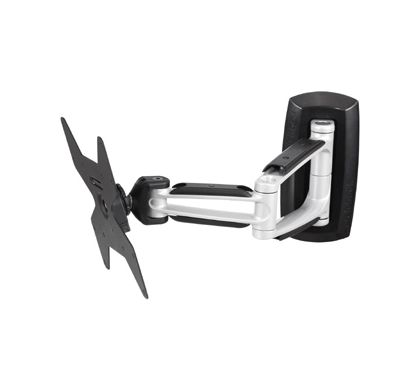

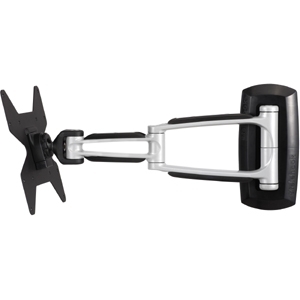

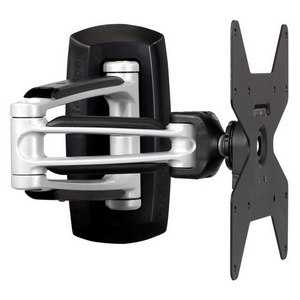

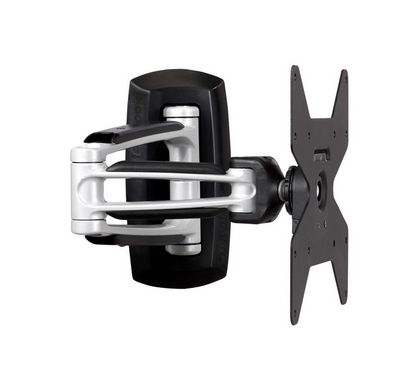

ATDEC Telehook TH-1040-VFM Wall Mount for Flat Panel Display
Description
This adjustable wall mount is designed for light weight LED/ LCD displays. It features an Articulated Arm for extended position adjustment, a Quick Attachment head for easy display mounting / replacement and a ball-joint for tilt/ pan and rotation adjustment. It supports VESA compatible displays up to 55 lbs. (25kg) and ships with an install guide and mounting hardware for timber stud and masonry wall attachment.
Specifications
General Information
Manufacturer:
Atdec Pty Ltd
Manufacturer Website Address:
http://www.atdec.com
Brand Name:
Telehook
Product Model:
TH-1040-VFM
Product Name:
TH-1040-VFM Wall Full Motion TV Mount
Product Type:
Wall Mount
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
24.95 kg
Minimum Screen Size Supported:
25.4 cm (10")
Maximum Screen Size Supported:
- 101.6 cm (40")
Features:
- Tilt
- Articulating
Physical Characteristics
Colour:
- Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
- 200 x 200
- 200 x 100
- 100 x 100
- 75 x 75
Material:
- Steel
- Aluminium
- Plastic
Miscellaneous
Package Contents:
- 1 x Articulated Arm
- 1 x VESA Plate
- 1 x Drilling Guide
- 1 x Tightening Tool
- 2 x M8 Coach Bolt
- 2 x Concrete Anchor
- 1 x 4mm Allen Key
- 4 x M4 Washer
- 4 x M5 Washer
- 1 x 2mm Allen Key
- 4 x M4 Spacer Bush
- 4 x M5 Spacer Bush
- 4 x M6 Spacer Bush
- 4 x M8 Spacer Bush
- Security Screw
- 4 x M4 x 16mm Screw
- 4 x M4 x 25mm Screw
- 4 x M5 x 16mm Screw
- 4 x M5 x 25mm Screw
- 4 x M6 x 16mm Screw
- 4 x M6 x 30mm Screw
Additional Information:
- Simple tension adjustment
- Portrait to landscape rotation
- Designed for simple installation
- TV horizontal adjustment of -/+5°
- Maximum reach from wall 444mm
- Minimum distance from wall 102mm
- Quick release mechanism for fast TV attachment/removal
- Advanced internal cable management
- Theft resistant design
- Offers a full range of movement via three pivot points
- Ball joint allows infinite TV adjustment for any viewing angle up to 40°
- Smooth Glide technology for effortless articulation or movement
Compatibility:
- LCD
- Plasma
- LED
Assembly Required:
- Yes
Warranty
Standard Warranty:
10 Year
